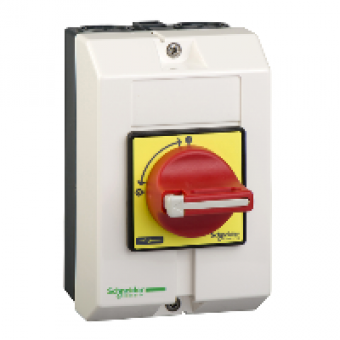

• VCF2GE - TeSys VARIO - enclosed emergency stop switch disconnector - 32 A, Schneider Electric

VCF2GE - TeSys VARIO - enclosed emergency stop switch disconnector - 32 A, Schneider Electric

  • € 41.60 Ex Tax:

MAIN CHARACTERISTICS
range
TESYS
product name
TESYS VARIO
device short name
VCF
product or component type
MRGC STOP SWITCH DISCONNECTOR
performance level
HIGH PERFORMANCE
poles description
3P
control type
ROTARY HANDLE
handle colour
RED
handle front plate colour
YELLOW
rotary handle padlocking
1 to 3 padlocks with 4...8 mm
COMPLEMETARY CHARACTERISTICS
marking
0 - 1
[Ue] rated operational voltage
690 V AC
[Uimp] rated impulse withstand voltage
8 KV
[Ithe] conventional enclosed thermal current
32 A
[Ie] rated operational current
29 A AC-23A 400 V
rated operational power in W
15 KW AT 400 V AC-23
intermittent duty class
30
Making capacity ( I rms)
400 A at 400 V AC-21A
[Icm] rated short-circuit making capacity
1 KA AT 400 V AT IPEAK
[Icw] rated short-time withstand Rms current
480 A AT 400 V DURING 1 S
rated conditional short-circuit current
10 KA AT 400 V - ASSOCIATED FUSE 50 A AM
breaking capacity
320 A at 400 V (AC-21A)
mechanical durability
100000 CYCLES
electrical durability
100000 cycles AC-21
environmental characteristic
STANDARD
suitability for isolation
YES
connections - terminals
control circuit : connector cable 10 mm² - cable stiffness: solid -
tightening torque
control circuit : 2.1 N.m - on connector
fire resistance
960 C CONFORMING TO IEC 60595-2-1
handle front plate dimension
60 X 60 MM
height
146 MM
width
90 MM
depth
131 MM
product weight
0.5 KG
compatibility code
ENCLOSED SWITCH DISCONNECTOR
