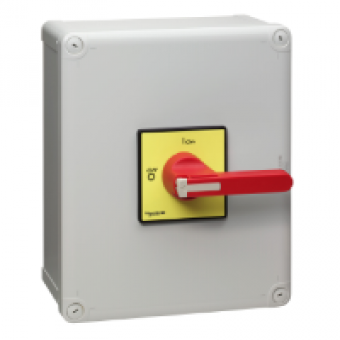

• VCF6GEN - TeSys VARIO - enclosed emergency stop switch disconnector - 140 A, Schneider Electric

VCF6GEN - TeSys VARIO - enclosed emergency stop switch disconnector - 140 A, Schneider Electric

  • € 138.09 Ex Tax:

MAIN CHARACTERISTICS
range
TESYS
product name
TESYS VARIO
device short name
VCF
product or component type
MRGC STOP SWITCH DISCONNECTOR
performance level
HIGH PERFORMANCE
poles description
3P
control type
ROTARY HANDLE
type of operator
LONG HANDLE
handle colour
RED
handle front plate colour
YELLOW
rotary handle padlocking
1 to 3 padlocks with 4...8 mm
COMPLEMETARY CHARACTERISTICS
marking
0 - 1
[Ue] rated operational voltage
690 V AC
[Uimp] rated impulse withstand voltage
8 KV
[Ithe] conventional enclosed thermal current
140 A
[Ie] rated operational current
83 A AC-23A 400 V
rated operational power in W
45 KW AT 400 V AC-23
intermittent duty class
30
Making capacity ( I rms)
1750 A at 400 V AC-21A
[Icm] rated short-circuit making capacity
2.8 KA AT 400 V AT IPEAK
[Icw] rated short-time withstand Rms current
2100 A AT 400 V DURING 1 S
rated conditional short-circuit current
10 KA AT 400 V - ASSOCIATED FUSE 200 A AM
breaking capacity
1400 A at 400 V (AC-21A)
mechanical durability
30000 CYCLES
electrical durability
30000 cycles AC-21
environmental characteristic
STANDARD
suitability for isolation
YES
connections - terminals
CONTROL CIRCUIT CONNECTOR CABLE 70 MM - CABLE STIFFNESS FLEXIBLE - WITH CABLE END CABLE END
tightening torque
control circuit : 22.6 N.m - on connector
fire resistance
960 C CONFORMING TO IEC 60595-2-1
handle front plate dimension
90 X 90 MM
height
291 MM
width
241 MM
depth
191 MM
product weight
2.19 KG
compatibility code
ENCLOSED SWITCH DISCONNECTOR
