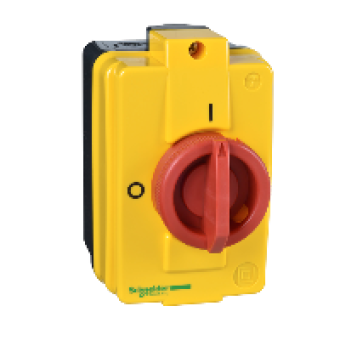

VCFN20GE - TeSys Mini-VARIO - enclosed emergency stop switch disconnector - 16 A, Schneider Electric
- Product Code: VCFN20GE
- Brand: Schneider Electric
- Availability: To be confirmed
- € 25.82 Ex Tax:
MAIN CHARACTERISTICS
range
TESYS
product name
TESYS MINI VARIO
device short name
VCFN
product or component type
MRGC STOP SWITCH DISCONNECTOR
performance level
STANDARD
poles description
3P
control type
ROTARY HANDLE
handle colour
RED
handle front plate colour
YELLOW
rotary handle padlocking
1 to 3 padlocks with 4...8 mm
COMPLEMETARY CHARACTERISTICS
marking
0 - 1
[Ue] rated operational voltage
690 V AC
[Uimp] rated impulse withstand voltage
8 KV
[Ithe] conventional enclosed thermal current
16 A
[Ie] rated operational current
11 A AC-23A at 400 V
rated operational power in W
5.5 KW AT 400 V AC-23
intermittent duty class
30
Making capacity ( I Rms)
200 A at 400 V AC-21A
[Icm] rated short-circuit making capacity
0.5 KA AT 400 V AT IPEAK
[Icw] rated short-time withstand Rms current
140 A AT 400 V DURING 1 S
rated conditional short-circuit current
6 KA AT 400 V - ASSOCIATED FUSE 20 A AM
breaking capacity
200 A at 400 V (AC-21A)
mechanical durability
50000 CYCLES
electrical durability
30000 cycles DC-1...5
suitability for isolation
YES
connections - terminals
control circuit : connector cable 4 mm² - cable stiffness: flexible - with cable end
tightening torque
control circuit : 0.7 N.m - on connector
fire resistance
960 C CONFORMING TO IEC 60595-2-1
handle front plate dimension
60 X 60 MM
height
131 MM
width
82.5 MM
depth
106 MM
product weight
0.422 KG
compatibility code
ENCLOSED SWITCH DISCONNECTOR
