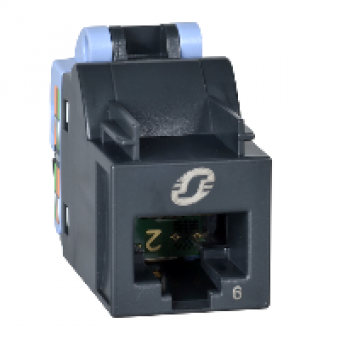

VDIB17726U12 - Actassi S-One Connector RJ45 Unshielded Cat 6 box x 12, Schneider Electric
- Product Code: VDIB17726U12
- Brand: Schneider Electric
- Availability: To be confirmed
- € 4.46 Ex Tax:
MAIN CHARACTERISTICS
range
ACTASSI
product type
RJ45 NETWORK SOCKET
type of footprint
S-ONE
device presentation
INTEGRATED ONE PIECE DESIGN
performance category
6
compatible LAN cable types
U UTP
supported applications
1000BASE-T
protocols
POE
material and colour
wire organizer : blue (ABS + PC)
colour coding
568 AB
quantity per set
SET OF 12
length
33 MM
width
18 MM
height
28 MM
COMPLEMETARY CHARACTERISTICS
frequency range
<= 250 MHZ
voltage proof
1000 V ACDC PEAK BETWEEN CONTACTS
current rating
<= 1.5 A 25 DC
insulation resistance
initial insulation resistance : <= 500 MOhm @100 V DC
electrical resistance
<= 20 MOHM
coupling attenuation
>= 35 DB FROM 30..100 MHZ
transverse conversion loss
>= 50 DB
contact pins
8 PINS IN COPPER ALLOY AND GOLD PLATED IEC 60603-7
durability
>= 750 CYCLES
IDC wire diameter
AWG 24..AWG 23
insulation diameter (wire)
0.9...1.4 MM
pulling force
50 N DURING 60 S
