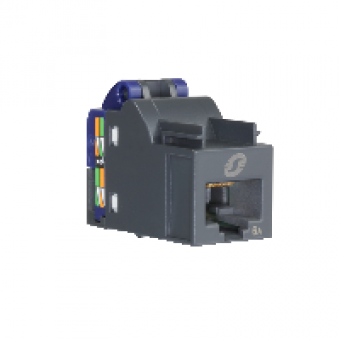

VDIB1772XU12 - Actassi S-One Connector RJ45 Unshielded Cat 6<sub>A</sub> box x 12, Schneider Electric
- Product Code: VDIB1772XU12
- Brand: Schneider Electric
- Availability: To be confirmed
- € 5.95 Ex Tax:
MAIN CHARACTERISTICS
range
ACTASSI
product type
RJ45 NETWORK SOCKET
type of footprint
S-ONE
device presentation
INTEGRATED ONE PIECE DESIGN
performance category
6A
compatible LAN cable types
U UTP
supported applications
10GBASE-T
protocols
POE
material and colour
wire organizer : dark blue (ABS + PC)
colour coding
568 AB
quantity per set
SET OF 12
length
33 MM
width
18 MM
height
28 MM
COMPLEMETARY CHARACTERISTICS
voltage proof
1000 V ACDC PEAK BETWEEN CONTACTS
current rating
<= 1.5 A 25 DC
insulation resistance
initial insulation resistance : <= 500 MOhm @100 V DC
electrical resistance
<= 20 MOHM
coupling attenuation
>= 35 DB FROM 30..100 MHZ
transverse conversion loss
>= 50 DB
contact pins
8 PINS IN COPPER ALLOY AND GOLD PLATED IEC 60603-7
durability
>= 750 CYCLES
IDC wire diameter
AWG 24..AWG 23
insulation diameter (wire)
0.9...1.4 MM
pulling force
50 N DURING 60 S
