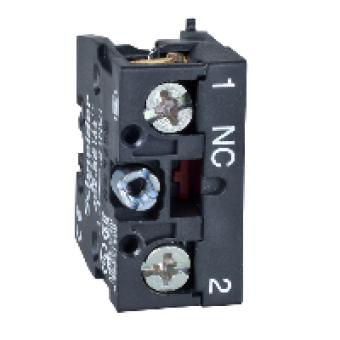

ZB2BE102 - CONTACT BLOCK, Schneider Electric
- Product Code: ZB2BE102
- Brand: Schneider Electric
- Availability: To be confirmed
- € 2.54 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XAC
product or component type
CONTACT BLOCK
component name
ZB2
electrical circuit type
CONTROL CIRCUIT
contact block application
SINGLE SPEED
contact block type
SINGLE
type of operator
SPRING RETURN
product compatibility
XACA
contacts type and composition
1 NC
mounting of block
FRONT MOUNTING
contact operation
SLOW-BREAK
COMPLEMETARY CHARACTERISTICS
connections - terminals
SCREW CLAMPS TERMINALS 1 X 2.5 MM WITH OR WITHOUT CABLE END
mechanical durability
1000000 CYCLES
contact code designation
A600 AC-15 UE = 240 V IE = 3 A CONFORMING TO IEC 947-5-1 APPENDIX A
[Ithe] conventional enclosed thermal current
10 A
[Ui] rated insulation voltage
600 V DEGREE OF POLLUTION 3 CONFORMING TO IEC 60947-1
[Uimp] rated impulse withstand voltage
6 KV CONFORMING TO IEC 60947-1
resistance across terminals
<= 25 MOHM
operating force
13...15 N
short-circuit protection
FUSE PROTECTION BY 10 A GG GL CARTRIDGE FUSE
rated operational power in W
40 W DC-13 FOR 1000000 CYCLES OPERATING RATE 3600 CYCH AT 120 V LOAD FACTOR = 0.5 CONFORMING TO IEC 60947-5-1
terminals description ISO n°1
11-12NC
product weight
0.02 KG
