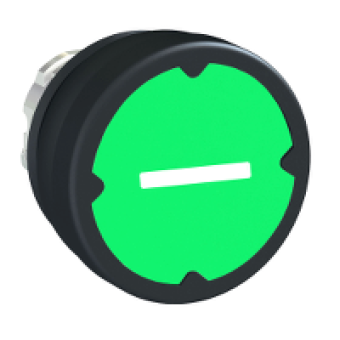

ZB4BC38023RA - pushbutton head for harsh environment - green - with marking-legend rotated 90°, Schneider Electric
- Product Code: ZB4BC38023RA
- Brand: Schneider Electric
- Availability: To be confirmed
- € 11.72 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XB4
product or component type
HEAD FOR PUSHBUTTON
device short name
ZB4
bezel material
CHROMIUM PLATED METAL
mounting diameter
22 MM
sale per indivisible quantity
1
COMPLEMETARY CHARACTERISTICS
CAD overall width
37 MM
CAD overall height
18.5 MM
CAD overall depth
37 MM
product weight
0.036 KG
electrical shock protection class
CLASS I CONFORMING TO IEC 61140
shape of signaling unit head
ROUND
type of operator
SPRING RETURN
operator profile
FLUSH GREEN TYPE H023 WHITE
operator additional information
HORIZONTAL MOUNTING
mechanical durability
3000000 CYCLES
vibration resistance
5 GN F=2...500 HZ CONFORMING TO IEC 60068-2-6
shock resistance
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
main group
HARSH ENVIRONMENT
group of product
FLUSH MARKED TYPE H023
cap/operator or lens colour
GREEN
marking
TYPE H023
colour of marking
WHITE
electrical composition code
C1 FOR <= 9 CONTACTS USING SINGLE BLOCKS IN FRONT MOUNTING
compatibility code
ZB4
