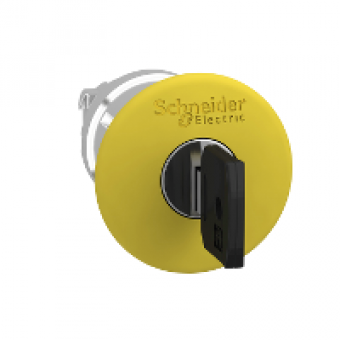

ZB4BS15 - yellow mushroom Ø40 mm Emergency stop Ø22 key release 455E, Schneider Electric
- Product Code: ZB4BS15
- Brand: Schneider Electric
- Availability: To be confirmed
- € 14.00 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XB4
product or component type
HEAD FOR MRGC SWITCHING OFF PB
device short name
ZB4
bezel material
CHROMIUM PLATED METAL
mounting diameter
22 MM
sale per indivisible quantity
10
shape of signaling unit head
ROUND
type of operator
MECHANICAL LATCHING
reset
KEY RELEASE
operator profile
YELLOW MUSHROOM 40 MM UNMARKED
type of keylock
RONIS 455
key withdrawal position
CENTRE
COMPLEMETARY CHARACTERISTICS
CAD overall width
40 MM
CAD overall height
40 MM
CAD overall depth
79 MM
product weight
0.07 KG
resistance to high pressure washer
7000000 PA AT 55 CDISTANCE 0.1 M
mechanical durability
300000 CYCLES
electrical composition code
C7 FOR <= 4 CONTACTS USING SINGLE BLOCKS IN FRONT MOUNTING
main group
SWITCHING OFF
group of product
EMERG SWIT OFF KEY RELEASE
cap/operator or lens colour
YELLOW
marking
UNMARKED
compatibility code
ZB4
The Schneider Electric ZB4BS15 is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
