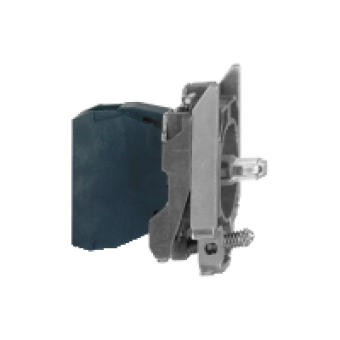

ZB4BV18M1 - white flashing light block with body/fixing collar integral LED 230...240V, Schneider Electric
- Product Code: ZB4BV18M1
- Brand: Schneider Electric
- Availability: To be confirmed
- € 16.91 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XB4
product or component type
CPLT BODY LIGHT BLOCK ASSEMBLY
device short name
ZB4
fixing collar material
ZAMAK
sale per indivisible quantity
1
connections - terminals
screw clamp terminals : <= 2 x 1.5 mm² with cable end
light source
PROTECTED LED
bulb base
INTEGRAL LED
light source colour
WHITE
[Us] rated supply voltage
230..240 V AC 5060 HZ
COMPLEMETARY CHARACTERISTICS
CAD overall width
30 MM
CAD overall height
47 MM
CAD overall depth
37 MM
terminals description ISO n°1
X1-X2PL
product weight
0.054 KG
tightening torque
0.8...1.2 N.M CONFORMING TO EN 60947-1
shape of screw head
CROSS HEAD COMPATIBLE WITH PHILIPS NO 1 SCREWDRIVER
[Ui] rated insulation voltage
600 V DEGREE OF POLLUTION 3 CONFORMING TO EN 60947-1
[Uimp] rated impulse withstand voltage
6 KV CONFORMING TO EN 60947-1
signalling type
FLASHING
supply voltage limits
195..264 V AC
current consumption
14 MA
service life
100000 H AT RATED VOLTAGE AND 25 C
surge withstand
1 KV CONFORMING TO IEC 61000-4-5
compatibility code
ZB4
