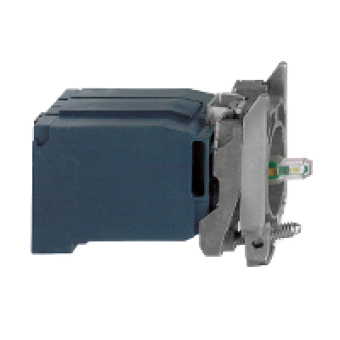

ZB4BV5D3 - green light block with body/fixing collar with BA9s LED bulb 400V, Schneider Electric
- Product Code: ZB4BV5D3
- Brand: Schneider Electric
- Availability: To be confirmed
- € 20.84 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XB4
product or component type
CPLT BODY LIGHT BLOCK ASSEMBLY
device short name
ZB4
fixing collar material
ZAMAK
sale per indivisible quantity
1
connections - terminals
screw clamp terminals : <= 2 x 1.5 mm² with cable end
light source
LED
bulb base
BA 9S
light block supply
VIA INTEGRAL TRANSFORMER 1.2 VA - 6 V
light source colour
GREEN
[Us] rated supply voltage
400 V AC 5060 HZ
COMPLEMETARY CHARACTERISTICS
CAD overall width
30 MM
CAD overall height
47 MM
CAD overall depth
60 MM
terminals description ISO n°1
X1-X2PL
product weight
0.134 KG
tightening torque
0.8...1.2 N.M CONFORMING TO EN 60947-1
shape of screw head
CROSS HEAD COMPATIBLE WITH PHILIPS NO 1 SCREWDRIVER
[Ui] rated insulation voltage
600 V DEGREE OF POLLUTION 3 CONFORMING TO EN 60947-1
[Uimp] rated impulse withstand voltage
6 KV CONFORMING TO EN 60947-1
signalling type
STEADY
mounting of block
FRONT MOUNTING
electrical composition code
P4
compatibility code
ZB4
The Schneider Electric ZB4BV5D3 is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
