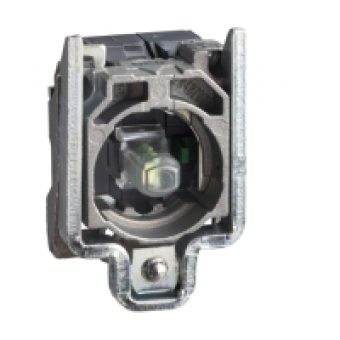

ZB4BW0B134 - white light block with body/fixing collar with integral LED 24V 2NO, Schneider Electric
- Product Code: ZB4BW0B134
- Brand: Schneider Electric
- Availability: To be confirmed
- € 10.64 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XB4
product or component type
COMPLETE BDY CTCT ASSY+LGT BLK
device short name
ZB4
fixing collar material
ZAMAK
sale per indivisible quantity
1
contacts type and composition
2 NO
contact operation
SLOW-BREAK
connections - terminals
PLUG-IN CONNECTOR
light source
PROTECTED LED
bulb base
INTEGRAL LED
light block supply
DIRECT
light source colour
WHITE
[Us] rated supply voltage
24 V ACDC 5060 HZ
COMPLEMETARY CHARACTERISTICS
CAD overall width
30 MM
CAD overall height
47 MM
terminals description ISO n°1
13-14NO
contacts usage
STANDARD
positive opening
WITHOUT POSITIVE OPENING
operating travel
2.6 MM NO CHANGING ELECTRICAL STATE
operating force
2.3 N NO CHANGING ELECTRICAL STATE
operating torque
0.05 N.M NO CHANGING ELECTRICAL STATE
mechanical durability
5000000 CYCLES
contacts material
SILVER ALLOY AG NI
short-circuit protection
4 A CARTRIDGE FUSE TYPE GG CONFORMING TO ENIEC 60947-5-1
[Ith] conventional free air thermal current
10 A CONFORMING TO ENIEC 60947-5-1
[Ui] rated insulation voltage
250 V DEGREE OF POLLUTION 3 CONFORMING TO ENIEC 60947-1
[Uimp] rated impulse withstand voltage
4 KV CONFORMING TO EN 60947-1
[Ie] rated operational current
3 A AT 240 V AC-15 A300 CONFORMING TO ENIEC 60947-5-1
electrical durability
1000000 CYCLES AC-15 1 A AT 230 V OPERATING RATE 3600 CYCH LOAD FACTOR 0.5 CONFORMING TO ENIEC 60947-5-1 APPENDIX C
electrical reliability
λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4
signalling type
STEADY
supply voltage limits
19.2..30 V DC
current consumption
18 MA
service life
100000 H AT RATED VOLTAGE AND 25 C
surge withstand
1 KV CONFORMING TO IEC 61000-4-5
compatibility code
ZB4
