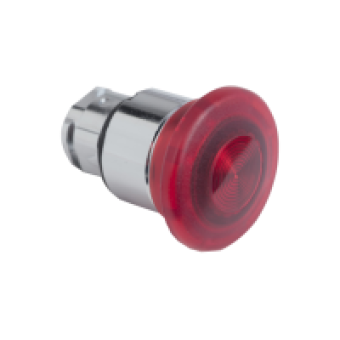

ZB4BW643 - red Ø40 Emerg switching off button head Ø22 latching push-pull for integral LED, Schneider Electric
- Product Code: ZB4BW643
- Brand: Schneider Electric
- Availability: To be confirmed
- € 13.28 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XB4
product or component type
HD F ILLUM MRGC SWTG OFF PB
device short name
ZB4
product compatibility
INTEGRAL LED
bezel material
CHROMIUM PLATED METAL
mounting diameter
22 MM
sale per indivisible quantity
1
shape of signaling unit head
ROUND
type of operator
MECHANICAL LATCHING
reset
PUSH-PULL
operator profile
RED MUSHROOM 40 MM UNMARKED
COMPLEMETARY CHARACTERISTICS
CAD overall width
40 MM
CAD overall height
40 MM
CAD overall depth
53 MM
product weight
0.051 KG
resistance to high pressure washer
7000000 PA AT 55 CDISTANCE 0.1 M
mechanical durability
500000 CYCLES
electrical composition code
M6 FOR <= 2 CONTACTS USING SINGLE BLOCKS IN FRONT MOUNTING WITH INTEGRAL LED AND TRANSFORMER
main group
SWITCHING OFF
group of product
MRGC SWTING OFF PSH-PULL ILLUM
cap/operator or lens colour
RED
marking
UNMARKED
compatibility code
ZB4
