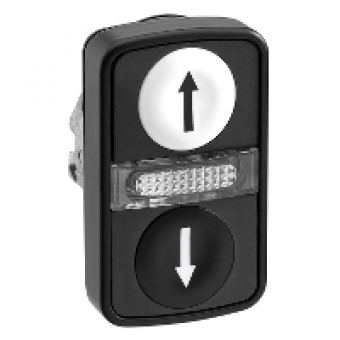

ZB4BW7A17247 - white flush/black flush illuminated double-headed pushbutton Ø22 with marking, Schneider Electric
- Product Code: ZB4BW7A17247
- Brand: Schneider Electric
- Availability: To be confirmed
- € 12.13 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XB4
product or component type
HD F ILLUM DOUBLE-HEADED PB
product compatibility
INTEGRAL LED
device short name
ZB4
bezel material
BLACK METAL
mounting diameter
22 MM
sale per indivisible quantity
1
shape of signaling unit head
RECTANGULAR
type of operator
SPRING RETURN
operator profile
2 FSH PBS - 1 CENTRAL PL LIGHT
operators description
WHITE UP-BLACK DOWN-RED STOP
COMPLEMETARY CHARACTERISTICS
CAD overall width
30 MM
CAD overall height
50 MM
CAD overall depth
30 MM
product weight
0.056 KG
resistance to high pressure washer
7000000 PA AT 55 CDISTANCE 0.1 M
colour of marking
BLACK MARKING WHEN WHITE CAPS
operator profile
WHITE FLUSH BLACK UP ARROW
mechanical durability
1000000 CYCLES
electrical composition code
M1 FOR <= 6 CONTACTS USING SINGLE BLOCKS IN FRONT MOUNTING WITH INTEGRAL LED
main group
ILLUM DOUBLE HEAD
group of product
FLUSH FLUSH ILLUM MARKED
cap/operator or lens colour
WHITE BLACK
marking
UP ARROW DOWN ARROW
colour of marking
BLACK WHITE
compatibility code
ZB4
