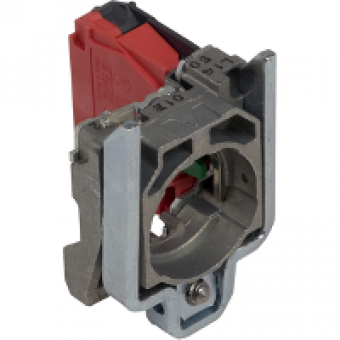

ZB4BZ1016 - single contact block with body/fixing collar 1NO spring clamp terminal, Schneider Electric
- Product Code: ZB4BZ1016
- Brand: Schneider Electric
- Availability: To be confirmed
- € 14.95 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XB4
product or component type
COMPLETE BODY CONTACT ASSEMBLY
device short name
ZB4
fixing collar material
ZAMAK
sale per indivisible quantity
1
contacts type and composition
1 NO
contact operation
SLOW-BREAK
contact block type
SINGLE
device composition
FIXING COLLAR
connections - terminals
screw clamp terminals : <= 2 x 1.5 mm² with cable end conforming to EN 60947-1
COMPLEMETARY CHARACTERISTICS
CAD overall width
30 MM
CAD overall height
47 MM
CAD overall depth
37 MM
terminals description ISO n°1
11-12NO
product weight
0.064 KG
contacts usage
STANDARD CONTACTS
positive opening
WITH POSITIVE OPENING CONFORMING TO ENIEC 60947-5-1 APPENDIX K
operating travel
1.5 MM NC CHANGING ELECTRICAL STATE
operating torque
0.05 N.M NO CHANGING ELECTRICAL STATE
mechanical durability
5000000 CYCLES
contacts material
GOLD FLASHED AG NI AU CTCTS
short-circuit protection
4 A CARTRIDGE FUSE TYPE GG CONFORMING TO ENIEC 60947-5-1
[Ith] conventional free air thermal current
10 A CONFORMING TO ENIEC 60947-5-1
[Ui] rated insulation voltage
250 V DEGREE OF POLLUTION 3 CONFORMING TO EN 60947-1
[Uimp] rated impulse withstand voltage
4 KV CONFORMING TO EN 60947-1
[Ie] rated operational current
3 A AT 240 V AC-15 A300 CONFORMING TO ENIEC 60947-5-1
electrical durability
1000000 CYCLES AC-15 1 A AT 230 V OPERATING RATE 3600 CYCH LOAD FACTOR 0.5 CONFORMING TO ENIEC 60947-5-1 APPENDIX C
electrical reliability
λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4
compatibility code
ZB4
