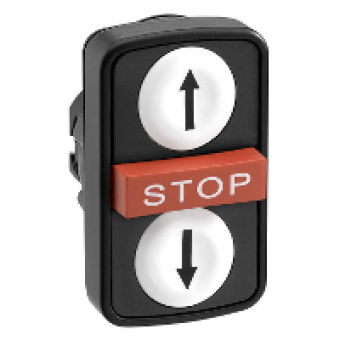

ZB5AA71114 - white flush/red projecting/white flush triple-headed pushbutton Ø22 with marking, Schneider Electric
- Product Code: ZB5AA71114
- Brand: Schneider Electric
- Availability: To be confirmed
- € 9.88 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XB5
product or component type
HEAD FOR TRIPLE-HEADED PB
device short name
XB5
bezel material
PLASTIC
mounting diameter
22 MM
shape of signaling unit head
RECTANGULAR
type of operator
SPRING RETURN
operator profile
2 FSH-1 CENTRAL PJTG STOP PBS
operators description
WHITE UP ARW - WHITE DOWN ARW
COMPLEMETARY CHARACTERISTICS
CAD overall width
30 MM
CAD overall height
50 MM
CAD overall depth
35 MM
product weight
0.023 KG
resistance to high pressure washer
7000000 PA AT 55 CDISTANCE 0.1 M
colour of marking
BLACK MARKING WHEN WHITE CAPS
operator profile
RED PROJECTING WHITE STOP
mechanical durability
1000000 CYCLES
main group
TRIPLE HEAD
group of product
FLUSH PROJ FLUSH MARKED
station name
XALD 1 CUT-OUT
cap/operator or lens colour
WHITE RED WHITE
marking
UP ARROW STOP DOWN ARROW
colour of marking
BLACK WHITE BLACK
electrical composition code
C1 FOR <= 9 CONTACTS USING SINGLE BLOCKS IN FRONT MOUNTING
compatibility code
XB5
