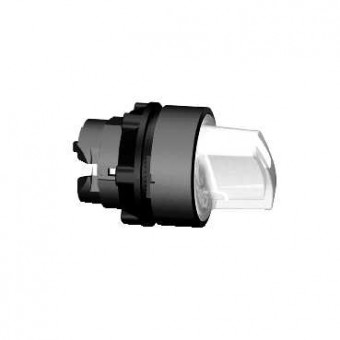

ZB5AK1413 - white illuminated selector switch head Ø22 2-position spring return, Schneider Electric
- Product Code: ZB5AK1413
- Brand: Schneider Electric
- Availability: To be confirmed
- € 8.51 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XB5
product or component type
HEAD FOR ILLUM SELECTOR SWITCH
product compatibility
INTEGRAL LED
device short name
ZB5
bezel material
PLASTIC
mounting diameter
22 MM
sale per indivisible quantity
1
shape of signaling unit head
ROUND
type of operator
SPRING RETURN RIGHT TO LEFT
operator profile
WHITE STANDARD HANDLE
operator position information
2 POSITIONS 90 D
COMPLEMETARY CHARACTERISTICS
CAD overall width
29 MM
CAD overall height
29 MM
CAD overall depth
43 MM
product weight
0.017 KG
mechanical durability
1000000 CYCLES
main group
ILLUM SELECT SWITCH
group of product
ILLUM INTEGRAL LED
station name
XALD 1..5 CUT-OUTS
cap/operator or lens colour
WHITE
electrical composition code
M3 FOR <= 4 CONTACTS USING SINGLE BLOCKS IN FRONT MOUNTING WITH INTEGRAL LED
compatibility code
ZB5
