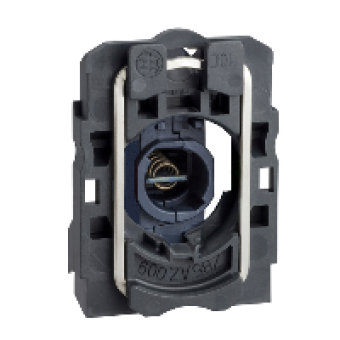

ZB5AV6 - light block with body/fixing collar for BA9s bulb 250V, Schneider Electric
- Product Code: ZB5AV6
- Brand: Schneider Electric
- Availability: To be confirmed
- € 3.47 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XB5
product or component type
CPLT BODY LIGHT BLOCK ASSEMBLY
device short name
ZB5
fixing collar material
PLASTIC
sale per indivisible quantity
1
connections - terminals
screw clamp terminals : <= 2 x 1.5 mm² with cable end conforming to EN 60947-1
light source
BULB NOT INCLUDED
bulb base
BA 9S
light block supply
DIRECT <= 2.4 W
COMPLEMETARY CHARACTERISTICS
CAD overall width
30 MM
CAD overall height
42 MM
CAD overall depth
32 MM
terminals description ISO n°1
X1-X2PL
product weight
0.022 KG
tightening torque
0.8...1.2 N.M CONFORMING TO EN 60947-1
shape of screw head
CROSS PHILIPS NO 1
[Ui] rated insulation voltage
600 V DEGREE OF POLLUTION 3 CONFORMING TO EN 60947-1
[Uimp] rated impulse withstand voltage
6 KV CONFORMING TO EN 60947-1
signalling type
STEADY
[Us] rated supply voltage
<= 250 V
compatibility code
ZB5
