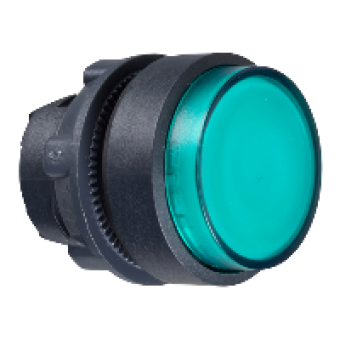

ZB5AW13 - green projecting illuminated pushbutton head Ø22 spring return for BA9s bulb, Schneider Electric
- Product Code: ZB5AW13
- Brand: Schneider Electric
- Availability: To be confirmed
- € 4.63 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XB5
product or component type
HEAD F ILLUMINATED PB
device short name
ZB5
product compatibility
BA 9S
bezel material
PLASTIC
mounting diameter
22 MM
sale per indivisible quantity
1
shape of signaling unit head
ROUND
type of operator
SPRING RETURN
operator profile
GREEN PROJECTING UNMARKED
operator additional information
WITH PLAIN LENS
COMPLEMETARY CHARACTERISTICS
CAD overall width
29 MM
CAD overall height
29 MM
CAD overall depth
32 MM
product weight
0.017 KG
resistance to high pressure washer
7000000 PA AT 55 CDISTANCE 0.1 M
mechanical durability
10000000 CYCLES
main group
ILLUM PUSHBUTTON
group of product
PROJECTED PUSH BA9S
station name
XALD 1..5 CUT-OUTS
cap/operator or lens colour
GREEN
marking
UNMARKED
electrical composition code
M7 FOR <= 6 CONTACTS USING SINGLE BLOCKS IN FRONT MOUNTING WITH BA 9S
compatibility code
ZB5
