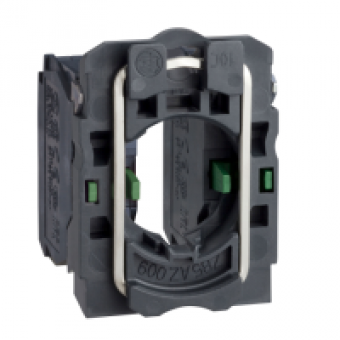

ZB5AZ103 - single contact block with body/fixing collar 2NO screw clamp terminal, Schneider Electric
- Product Code: ZB5AZ103
- Brand: Schneider Electric
- Availability: To be confirmed
- € 4.78 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY XB5
product or component type
COMPLETE BODY CONTACT ASSEMBLY
device short name
ZB5
fixing collar material
PLASTIC
sale per indivisible quantity
1
contacts type and composition
2 NO
contact operation
SLOW-BREAK
contact block type
SINGLE
connections - terminals
SCREW CLAMP TERMINALS <= 2 X 1.5 MM WITH CABLE END EN 60947-1
COMPLEMETARY CHARACTERISTICS
CAD overall width
30 MM
CAD overall height
42 MM
CAD overall depth
32 MM
terminals description ISO n°1
13-14NO
device composition
BODY
contacts usage
STANDARD CONTACTS
positive opening
WITHOUT POSITIVE OPENING
operating travel
2.6 MM NO CHANGING ELECTRICAL STATE
mechanical durability
10000000 CYCLES
tightening torque
0.8...1.2 N.M CONFORMING TO EN 60947-1
shape of screw head
CROSS HEAD COMPATIBLE WITH PHILIPS NO 1 SCREWDRIVER
contacts material
SILVER ALLOY AG NI
short-circuit protection
10 A CARTRIDGE FUSE TYPE GG CONFORMING TO ENIEC 60947-5-1
[Ith] conventional free air thermal current
10 A CONFORMING TO ENIEC 60947-5-1
[Ui] rated insulation voltage
600 V DEGREE OF POLLUTION 3 CONFORMING TO EN 60947-1
[Uimp] rated impulse withstand voltage
6 KV CONFORMING TO EN 60947-1
[Ie] rated operational current
3 A AT 240 V AC-15 A600 CONFORMING TO ENIEC 60947-5-1
electrical durability
1000000 CYCLES AC-15 2 A AT 230 V OPERATING RATE 3600 CYCH LOAD FACTOR 0.5 CONFORMING TO ENIEC 60947-5-1 APPENDIX C
electrical reliability
λ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4
compatibility code
ZB5
