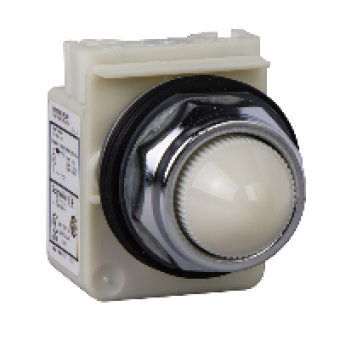

9001KP38LWW9 - 120V 30MM WHITE LED PILOT LIGHT T-K, Schneider Electric
- Product Code: 9001KP38LWW9
- Brand: Schneider Electric
- Availability: To be confirmed
- € 44.18 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY 9001K
product or component type
PILOT LIGHT
device short name
9001K
COMPLEMETARY CHARACTERISTICS
bezel material
CHROMIUM PLATED METAL
mounting diameter
30 MM
shape of signaling unit head
ROUND
lens type
DOMED PLASTIC
cap/operator or lens colour
WHITE
light source
WHITE LED
bulb base
BA 9S
light block supply
DIRECT
connections - terminals
SCREW CLAMP TERMINALS 1 X 0.22...2 X 1.5 MM CONFORMING TO IEC 60947-1
tightening torque
0.8 N.M CONFORMING TO IEC 60947-1
shape of screw head
CROSS SLOTTED
shape of screw head
CROSS SLOTTED HEAD
operating position
ANY POSITION
[Ui] rated insulation voltage
250 V DEGREE OF POLLUTION 2 CONFORMING TO IEC 60947-1
[Uimp] rated impulse withstand voltage
2.5 KV CONFORMING TO IEC 60947-1
short-circuit protection
10 A CARTRIDGE FUSE CONFORMING TO IEC 60947-5-1
light source
HIGH LUMINOSITY LED
[Ith] conventional free air thermal current
10 A
CAD overall width
54 MM
CAD overall height
70 MM
CAD overall depth
42 MM
[Us] rated supply voltage
120 V ACDC
product weight
0.134 KG
device presentation
COMPLETE PRODUCT
compatibility code
9001K
