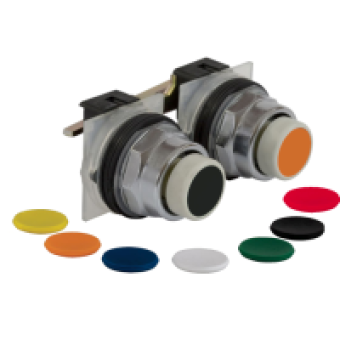

9001KR11UH1H1 - PUSH BUTTON 600VAC 10A 30MM T-K, Schneider Electric
- Product Code: 9001KR11UH1H1
- Brand: Schneider Electric
- Availability: To be confirmed
- € 92.72 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY 9001K
product or component type
2 MECHANICALLY INTERLOCKED PBS
device short name
9001K
type of operator
2 stay put
operator profile
flush 7 colours choice, marking: unmarked
COMPLEMETARY CHARACTERISTICS
bezel material
CHROMIUM PLATED METAL
mounting diameter
30 MM
shape of signaling unit head
OCTAGONAL
contacts type and composition
1 NC + 1 NO
connections - terminals
SCREW CLAMP TERMINALS 1 X 0.22...2 X 1.5 MM CONFORMING TO ENIEC 60947-1
tightening torque
0.8 N.M CONFORMING TO IEC 60947-1
shape of screw head
CROSS SLOTTED
mechanical durability
5000000 CYCLES
operating position
ANY POSITION
[Ie] rated operational current
3 A 240 V AC-15 A600-Q600 NEMA
[Ui] rated insulation voltage
250 V DEGREE OF POLLUTION 3
[Uimp] rated impulse withstand voltage
2.5 KV CONFORMING TO ENIEC 60
contacts material
SILVER ALLOY CONTACTS
positive opening
WITHOUT
short-circuit protection
10 A CARTRIDGE FUSE CONFORMING TO ENIEC 60947-5-1
[Ith] conventional free air thermal current
10 A
[Icm] rated short-circuit making capacity
<= 12 KA AT 600 V AC-15 7200 VA
rated breaking capacity
<= 3 KA AT 240 V AC-15 720 VA
product weight
0.54 KG
device presentation
COMPLETE PRODUCT
compatibility code
9001K
