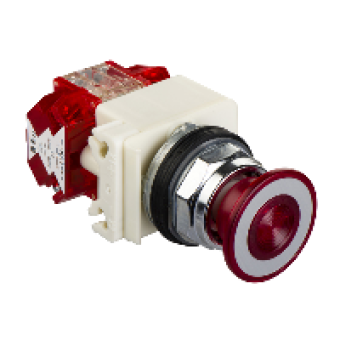

9001KR9P38RH25 - PUSHBUTTON 30MM 110-120V 50-60HZ K, Schneider Electric
- Product Code: 9001KR9P38RH25
- Brand: Schneider Electric
- Availability: To be confirmed
- € 60.61 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY 9001K
product or component type
ILLUMINATED MUSHROOM HEAD PB
device short name
9001K
type of operator
PUSH-PULL
operator profile
RED MUSHROOM 41 MM UNMARKED
light block supply
DIRECT
COMPLEMETARY CHARACTERISTICS
bezel material
CHROMIUM PLATED METAL
mounting diameter
30 MM
CAD overall width
54 MM
CAD overall height
42 MM
CAD overall depth
103 MM
terminals description ISO n°1
11-12NC OL
product weight
0.168 KG
operating position
ANY POSITION
shape of signaling unit head
ROUND
operator position information
2 POSITIONS
contacts type and composition
2 NC
contacts type and composition
1 NC LATE-BREAK
positive opening
WITH CONFORMING TO IEC 60947-5-2
mechanical durability
5000000 CYCLES
connections - terminals
SCREW CLAMP TERMINALS 1 X 0.22...2 X 1.5 MM CONFORMING TO IEC 60947-1
tightening torque
0.8 N.M CONFORMING TO IEC 60947-1
shape of screw head
CROSS SLOTTED HEAD
contacts material
SILVER ALLOY CONTACTS
short-circuit protection
10 A CARTRIDGE FUSE CONFORMING TO IEC 60947-5-1
[Ith] conventional free air thermal current
10 A
[Ui] rated insulation voltage
250 V DEGREE OF POLLUTION 3 CONFORMING TO IEC 60947-1
[Uimp] rated impulse withstand voltage
2.5 KV CONFORMING TO IEC 60947-1
[Ie] rated operational current
0.55 A AT 125 V DC-13 A600-Q
[Icm] rated short-circuit making capacity
<= 12 KA AT 600 V AC-15 7200 VA
rated breaking capacity
<= 1.2 KA AT 600 V AC-15 720 VA
light source
INCANDESCENT
bulb base
BA 9S
[Us] rated supply voltage
120 V ACDC
operator additional information
SCREW ON PLASTIC MUSHROOM
device presentation
COMPLETE PRODUCT
compatibility code
9001K
