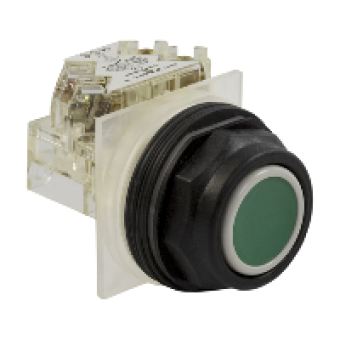

9001SKR1GH13 - PUSHBUTTON 600VAC 10AMP 30MM SK +OPTIONS, Schneider Electric
- Product Code: 9001SKR1GH13
- Brand: Schneider Electric
- Availability: To be confirmed
- € 16.94 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY 9001SK
product or component type
PUSHBUTTON
device short name
9001SK
type of operator
SPRING RETURN
operator profile
FLUSH GREEN MARKING UNMARKED
operator additional information
FULL GUARD IN PLASTIC
COMPLEMETARY CHARACTERISTICS
bezel material
PLASTIC
mounting diameter
30 MM
shape of signaling unit head
OCTAGONAL
contacts type and composition
1 CO
contact operation
SLOW-BREAK
connections - terminals
SCREW CLAMP TERMINALS 1 X 0.22...2 X 1.5 MM CONFORMING TO ENIEC 60947-1
tightening torque
0.8 N.M CONFORMING TO ENIEC 6
shape of screw head
CROSS SLOTTED
mechanical durability
5000000 CYCLES
operating position
ANY POSITION
[Ie] rated operational current
3 A AT 240 V AC-15 A600-Q600
[Ui] rated insulation voltage
250 V DEGREE OF POLLUTION 3
[Uimp] rated impulse withstand voltage
2.5 KV CONFORMING TO ENIEC 60
contacts material
SILVER ALLOY CONTACTS
positive opening
WITHOUT
short-circuit protection
10 A CARTRIDGE FUSE CONFORMING TO ENIEC 60947-5-1
[Ith] conventional free air thermal current
10 A
[Icm] rated short-circuit making capacity
<= 12 KA AT 600 V AC-15 7200 VA
rated breaking capacity
<= 3 KA AT 240 V AC-15 720 VA
product weight
0.086 KG
device presentation
COMPLETE PRODUCT
compatibility code
9001SK
