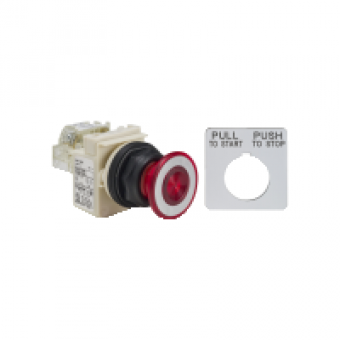

9001SKR9P1RH13 - PUSHBUTTON 120VAC 30MM SK +OPTIONS, Schneider Electric
- Product Code: 9001SKR9P1RH13
- Brand: Schneider Electric
- Availability: To be confirmed
- € 82.39 Ex Tax:
MAIN CHARACTERISTICS
range of product
HARMONY 9001SK
product or component type
ILLUMINATED MUSHROOM HEAD PB
device short name
9001SK
type of operator
PUSH-PULL
operator profile
RED MUSHROOM 41 MM
light block supply
VIA INTEGRAL TRANSFORMER
COMPLEMETARY CHARACTERISTICS
bezel material
PLASTIC
mounting diameter
30 MM
product weight
0.226 KG
operating position
ANY POSITION
shape of signaling unit head
ROUND
contacts type and composition
1 CO
mechanical durability
5000000 CYCLES
connections - terminals
SCREW CLAMP TERMINALS 1 X 0.22...2 X 1.5 MM CONFORMING TO IEC 60947-1
tightening torque
0.8 N.M CONFORMING TO IEC 60947-1
shape of screw head
CROSS SLOTTED HEAD
contacts material
SILVER ALLOY CONTACTS
short-circuit protection
10 A CARTRIDGE FUSE CONFORMING TO IEC 60947-5-1
[Ith] conventional free air thermal current
10 A
[Ui] rated insulation voltage
250 V DEGREE OF POLLUTION 3 CONFORMING TO IEC 60947-1
[Uimp] rated impulse withstand voltage
2.5 KV CONFORMING TO IEC 60947-1
[Icm] rated short-circuit making capacity
<= 12 KA AT 600 V AC-15 7200 VA
rated breaking capacity
<= 1.2 KA AT 600 V AC-15 720 VA
light source
INCANDESCENT
bulb base
BA 9S
[Us] rated supply voltage
110...120 V AC 50...60 HZ
operator additional information
SCREW ON PLASTIC MUSHROOM
device presentation
COMPLETE PRODUCT
