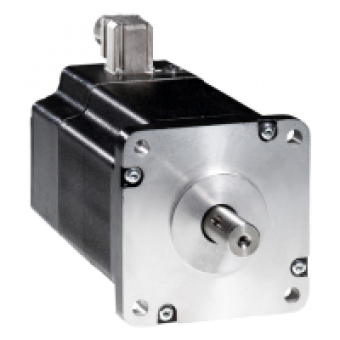

BRS3ADW851FCA - 3-phase stepper motor - 19.7 Nm - shaft Ø19mm - L=230 mm - with brake- connector, Schneider Electric
- Product Code: BRS3ADW851FCA
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range compatibility
LEXIUM SD3
product or component type
MOTION CONTROL MOTOR
device short name
BRS3
maximum mechanical speed
3000 RPM
motor type
3-PHASE STEPPER MOTOR
number of motor poles
6
supply voltage limits
230 V AC
mounting support
FLANGE
motor flange size
110 MM
length
228 MM
centring collar diameter
56 MM
COMPLEMETARY CHARACTERISTICS
centring collar depth
3 MM
number of mounting holes
4
mounting holes diameter
9 MM
circle diameter of the mounting holes
125.86 MM
electrical connection
CONNECTOR
feedback type
INDEX PULSE
speed feedback resolution
10000 POINTS TURN
holding brake
WITH
shaft end
PARALLEL KEY
second shaft
WITHOUT SECOND SHAFT END
shaft diameter
19 MM
shaft length
40 MM
nominal torque
16.5 N.M
peak stall torque
16.45 N.M
continuous stall torque
16.45 N.M
holding torque
19.7 N.M
rotor inertia
16 KG.CM
resolution
1.8 0.9 0.72 0.36 0.18 0.09 0.072 0.036 STEP ANGLE
accuracy error
+ - 6 ARC MIN
maximum starting frequency
4.7 KHZ
[In] rated current
4.75 A
resistance
1.9 OHM WINDING
time constant
22 MS
maximum radial force Fr
150 N SECOND SHAFT END
maximum axial force Fa
330 N TENSILE FORCE
service life in hours
20000 H BEARING
angular acceleration
200000 RADS
product weight
11.2 KG
sizing reference
BRS3AD
supply voltage description
SINGLE PHASE 115 V AC
coefficient M0
0.00344 N.MRPM
coefficient M0 max
0.00344 N.MRPM
voltage 1
115 V
voltage 1 speed 1
280.354300721264 RPM
voltage 1 speed 1 max
280.354300721264 RPM
coefficient 1_0
-353.47 N.M
coefficient 1_1
417.3378 N.MRPM
coefficient 1_2
-152.414 N.MRPM
coefficient 1_3
17.7491 N.MRPM3
voltage 2
230 V
voltage 2 speed 2
280.354300721264 RPM
voltage 2 speed 2 max
280.354300721264 RPM
coefficient 2_0
-353.47 N.M
coefficient 2_1
417.3378 N.MRPM
coefficient 2_2
-152.414 N.MRPM
coefficient 2_3
17.7491 N.MRPM3
curve type
SEMILOG
accuracy error [angular]
0.1
