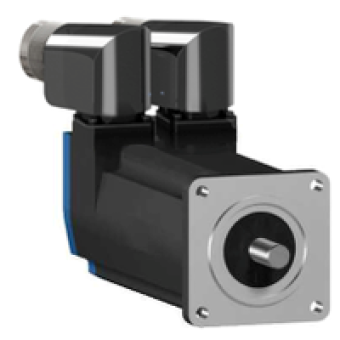

BSH0551T31A2A - AC servo motor BSH - 0.5 N.m - 8000 rpm - keyed shaft - without brake - IP65, Schneider Electric
- Product Code: BSH0551T31A2A
- Brand: Schneider Electric
- Availability: To be confirmed
- € 963.83 Ex Tax:
MAIN CHARACTERISTICS
product or component type
SERVO MOTOR
device short name
BSH
maximum mechanical speed
9000 RPM
continuous stall torque
0.5 N.M FOR LXM32.U90M2 3 A AT 115 V SINGLE PHASE
peak stall torque
1.5 N.M FOR LXM32.U90M2 3 A AT 115 V SINGLE PHASE
nominal output power
150 W FOR LXM32.U90M2 3 A AT 115 V SINGLE PHASE
nominal torque
0.49 N.M FOR LXM32.U90M2 3 A AT 115 V SINGLE PHASE
nominal speed
3000 RPM FOR LXM32.U90M2 3 A AT 115 V SINGLE PHASE
product compatibility
LXM05AD10F1 AT 110...120 V SINGLE PHASE
shaft end
KEYED
IP degree of protection
IP65 STANDARD
speed feedback resolution
131072 POINTS TURN
holding brake
WITHOUT
mounting support
INTERNATIONAL STANDARD FLANGE
electrical connection
ROTATABLE RIGHT-ANGLED CONNS
COMPLEMETARY CHARACTERISTICS
range compatibility
LEXIUM 05
supply voltage max
480 V
network number of phases
THREE PHASE
continuous stall current
1.4 A
maximum continuous power
0.45 W
maximum current Irms
6.2 A FOR LXM15LD13M3
maximum permanent current
5.4 A
switching frequency
8 KHZ
second shaft
WITHOUT SECOND SHAFT END
shaft diameter
9 MM
shaft length
20 MM
key width
12 MM
feedback type
SINGLE TURN SINCOS HIPERFACE
motor flange size
55 MM
number of motor stacks
1
torque constant
0.36 N.MA AT 120 DC
back emf constant
22 VKRPM AT 120 DC
number of motor poles
6
rotor inertia
0.059 KG.CM
stator resistance
12.2 OHM AT 20 DC
stator inductance
20.8 MH AT 20 DC
stator electrical time constant
1.7 MS AT 20 DC
maximum radial force Fr
170 N AT 8000 RPM
maximum axial force Fa
0.2 X FR
type of cooling
NATURAL CONVECTION
length
132.5 MM
centring collar diameter
40 MM
centring collar depth
2 MM
number of mounting holes
4
mounting holes diameter
5.5 MM
circle diameter of the mounting holes
63 MM
product weight
1.2 KG
sizing reference
BSH0551T
network number of phases
3
accuracy error [angular]
1.4
coefficient 1_1
-2.50000000086709E-06 N.MRPM
coefficient 1_2
1.052522899719E-18 N.MRPM
coefficient 1_3
-4.76888496E-22 N.MRPM3
coefficient 1_4
9.908E-26 N.MRPM4
coefficient 1_5
-9E-30 N.MRPM5
coefficient 1_6
0 N.MRPM6
saturation coefficient 1
1.9804872007525E-17
saturation coefficient 2
-0.0104515819871625
saturation coefficient 3
-9.99229476967E-19
temperature copper hot
120 C
temperature magnet hot
100 C
temperature magnet rt
20 C
motor voltage drop coefficient
1
