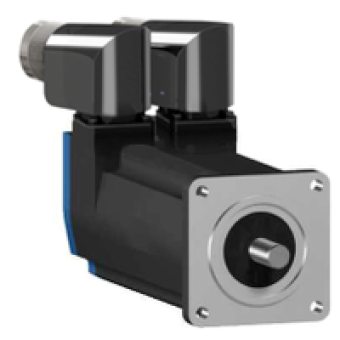

BSH0553T02F2A - AC servo motor BSH - 1.3 N.m - 3000 rpm - untapped shaft - with brake - IP50, Schneider Electric
- Product Code: BSH0553T02F2A
- Brand: Schneider Electric
- Availability: To be confirmed
- € 1,169.97 Ex Tax:
MAIN CHARACTERISTICS
product or component type
SERVO MOTOR
device short name
BSH
maximum mechanical speed
9000 RPM
continuous stall torque
1.2 N.M FOR LXM32.U90M2 3 A AT 230 V SINGLE PHASE
peak stall torque
3 N.M FOR LXM32.U90M2 3 A AT 230 V SINGLE PHASE
nominal output power
550 W FOR LXM32.U90M2 3 A AT 230 V SINGLE PHASE
nominal torque
0.84 N.M FOR LXM32.U90M2 3 A AT 230 V SINGLE PHASE
nominal speed
6000 RPM FOR LXM32.U90M2 3 A AT 230 V SINGLE PHASE
product compatibility
LXM05AD17F1 AT 110...120 V SINGLE PHASE
shaft end
UNTAPPED
IP degree of protection
IP50 STANDARD
speed feedback resolution
131072 POINTS TURNX4096 TURNS
holding brake
WITH
mounting support
INTERNATIONAL STANDARD FLANGE
electrical connection
ROTATABLE RIGHT-ANGLED CONNS
COMPLEMETARY CHARACTERISTICS
range compatibility
LEXIUM 05
supply voltage max
480 V
network number of phases
THREE PHASE
continuous stall current
3.1 A
maximum continuous power
0.97 W
maximum current Irms
11.9 A FOR LXM05AD17F1
maximum permanent current
11.9 A
switching frequency
8 KHZ
second shaft
WITHOUT SECOND SHAFT END
shaft diameter
9 MM
shaft length
20 MM
feedback type
MULTITURN SINCOS HIPERFACE
holding torque
0.8 N.M HOLDING BRAKE
motor flange size
55 MM
number of motor stacks
3
torque constant
0.39 N.MA AT 120 DC
back emf constant
22 VKRPM AT 120 DC
number of motor poles
6
rotor inertia
0.1553 KG.CM
stator resistance
3.1 OHM AT 20 DC
stator inductance
7.4 MH AT 20 DC
stator electrical time constant
2.39 MS AT 20 DC
maximum radial force Fr
190 N AT 8000 RPM
maximum axial force Fa
0.2 X FR
brake pull-in power
10 W
type of cooling
NATURAL CONVECTION
length
203 MM
centring collar diameter
40 MM
centring collar depth
2 MM
number of mounting holes
4
mounting holes diameter
5.5 MM
circle diameter of the mounting holes
63 MM
product weight
1.9 KG
sizing reference
BSH0553T
network number of phases
3
accuracy error [angular]
1.4
coefficient 1_1
-1.87500000003E-05 N.MRPM
coefficient 1_2
-2.567453870888E-18 N.MRPM
coefficient 1_3
1.186198773E-21 N.MRPM3
coefficient 1_4
-2.5023E-25 N.MRPM4
coefficient 1_5
2.4E-29 N.MRPM5
coefficient 1_6
0 N.MRPM6
saturation coefficient 1
-2.559177653241E-18
saturation coefficient 2
-0.0112504371592276
saturation coefficient 3
1.43774025462E-19
temperature copper hot
120 C
temperature magnet hot
100 C
temperature magnet rt
20 C
motor voltage drop coefficient
1
The Schneider Electric BSH0553T02F2A is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
