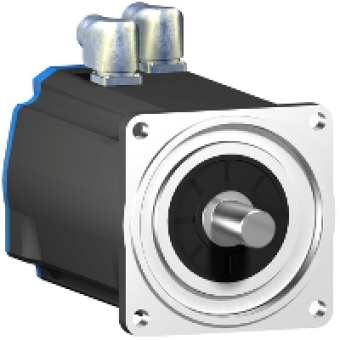

BSH1402P22A2A - AC servo motor BSH - 14.9 N.m - 1500 rpm - untapped shaft - without brake - IP50, Schneider Electric
- Product Code: BSH1402P22A2A
- Brand: Schneider Electric
- Availability: To be confirmed
- € 2,255.42 Ex Tax:
MAIN CHARACTERISTICS
product or component type
SERVO MOTOR
device short name
BSH
maximum mechanical speed
4000 RPM
continuous stall torque
19.5 N.M FOR LXM15MD40N4 AT 400 V THREE PHASE
peak stall torque
28.71 N.M FOR LXM15LD28M3 AT 230 V THREE PHASE
nominal output power
2350 W FOR LXM05AD42M3X AT 200...240 V THREE PHASE
nominal torque
8 N.M FOR LXM15MD40N4 AT 480 V THREE PHASE
nominal speed
1500 RPM FOR LXM05AD42M3X AT 200...240 V THREE PHASE
product compatibility
LXM05AD42M3X AT 200...240 V THREE PHASE
shaft end
UNTAPPED
IP degree of protection
IP65 STANDARD
speed feedback resolution
131072 POINTS TURN
holding brake
WITHOUT
mounting support
INTERNATIONAL STANDARD FLANGE
electrical connection
ROTATABLE RIGHT-ANGLED CONNS
COMPLEMETARY CHARACTERISTICS
range compatibility
LEXIUM 05
supply voltage max
480 V
network number of phases
THREE PHASE
continuous stall current
13.2 A
maximum continuous power
4.2 W
maximum current Irms
44.1 A FOR LXM15LD28M3
maximum permanent current
44.1 A
switching frequency
4 KHZ
second shaft
WITHOUT SECOND SHAFT END
shaft diameter
24 MM
shaft length
50 MM
feedback type
MULTITURN SINCOS HIPERFACE
motor flange size
140 MM
number of motor stacks
2
torque constant
1.47 N.MA AT 120 DC
back emf constant
101 VKRPM AT 120 DC
number of motor poles
10
rotor inertia
12.68 KG.CM
stator resistance
0.6 OHM AT 20 DC
stator inductance
7.4 MH AT 20 DC
stator electrical time constant
12.33 MS AT 20 DC
maximum radial force Fr
1680 N AT 3000 RPM
maximum axial force Fa
0.2 X FR
type of cooling
NATURAL CONVECTION
length
272.5 MM
centring collar diameter
130 MM
centring collar depth
3.5 MM
number of mounting holes
4
mounting holes diameter
11 MM
circle diameter of the mounting holes
165 MM
product weight
16.6 KG
sizing reference
BSH1402P
network number of phases
3
accuracy error [angular]
1.4
coefficient 1_1
-0.0024000000000175 N.MRPM
coefficient 1_2
5.3298465842116E-17 N.MRPM
coefficient 1_3
-5.8201009943E-20 N.MRPM3
coefficient 1_4
2.8579137E-23 N.MRPM4
coefficient 1_5
-6.45E-27 N.MRPM5
coefficient 1_6
0 N.MRPM6
saturation coefficient 1
-1.599486033275E-18
saturation coefficient 2
-0.00333676022738165
saturation coefficient 3
8.9858765914E-20
temperature copper hot
120 C
temperature magnet hot
100 C
temperature magnet rt
20 C
motor voltage drop coefficient
1
