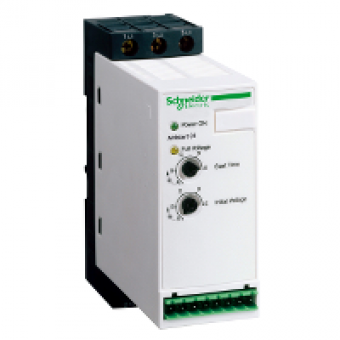

ATS01N125FT - soft starter for asynchronous motor - ATS01 - 25 A - 110..480V - 2.2..11 KW, Schneider Electric
- Product Code: ATS01N125FT
- Brand: Schneider Electric
- Availability: To be confirmed
- € 222.75 Ex Tax:
MAIN CHARACTERISTICS
range of product
ALTISTART 01
product or component type
SOFT STARTER
product destination
ASYNCHRONOUS MOTORS
product specific application
SIMPLE MACHINE
device short name
ATS01
network number of phases
1 PHASE
[Us] rated supply voltage
110...480 V - 10...10
motor power kW
11 KW 3 PHASES 400 V
motor power hp
11 HP 3 PHASES 460 V
IcL starter rating
25 A
utilisation category
AC-53B ENIEC 60947-4-2
current consumption
125 A AT NOMINAL LOAD
type of start
START WITH VOLTAGE RAMP
power dissipation in W
1 W AT FULL LOAD AND AT END OF STARTING
COMPLEMETARY CHARACTERISTICS
assembly style
WITH HEATSINK
function available
INTEGRATED BYPASS
supply voltage limits
99...528 V
supply frequency
50..60 HZ - 5..5
network frequency
47.5..63 HZ
output voltage
<= POWER SUPPLY VOLTAGE
[Uc] control circuit voltage
110 V AC +- 10 35 MA
starting time
1 S 100
starting torque
30..80 PT OF TQ CON ON LINE
discrete output current
2 A DC-13
tightening torque
0.5 N.M
electrical connection
4 MM SCREW CLAMP TERMINAL RIGID 1 1...10 MM AWG 8 POWER CIRCUIT
marking
CE
operating position
VERTICAL + -10 DEGREE
height
124 MM
width
45 MM
depth
131 MM
product weight
0.35 KG
compatibility code
ATS01N1
Motor power range AC-3
2.2...3 KW AT 200...240 V 3 PHASES
motor starter type
SOFT STARTER
