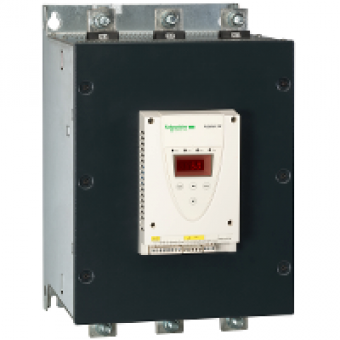

ATS22C48S6U - soft starter-ATS22-control110V-power 208V(150hp)/460V(350hp)/575V(400hp), Schneider Electric
- Product Code: ATS22C48S6U
- Brand: Schneider Electric
- Availability: To be confirmed
- € 4,670.96 Ex Tax:
MAIN CHARACTERISTICS
range of product
ALTISTART 22
product or component type
SOFT STARTER
product destination
ASYNCHRONOUS MOTORS
product specific application
PUMPS AND FANS
component name
ATS22
network number of phases
3 PHASES
[Us] rated supply voltage
208...600 V - 15...10
motor power hp
150 HP 208 V
factory setting current
414 A
power dissipation in W
218 W FOR STANDARD APPLICATIONS
utilisation category
AC-53A
type of start
START WITH TORQUE CONTROL
IcL starter rating
480 A CONNECTION IN THE MOTOR SUPPLY LINE FOR STANDARD APPLICATIONS
IP degree of protection
IP00
COMPLEMETARY CHARACTERISTICS
assembly style
WITH HEATSINK
function available
INTERNAL BYPASS
supply voltage limits
177...660 V
supply frequency
50...60 HZ - 10...10
network frequency
45..66 HZ
device connection
IN THE MOTOR SUPPLY LINE
[Uc] control circuit voltage
110 V -15...10 5060 HZ
control circuit consumption
20 W
discrete output number
2
discrete output type
RELAY OUTPUTS R1 230 V RUNNING ALARM TRIP STOPPED NOT STOPPED STARTING READY CO
minimum switching current
100 MA 12 V DC RELAY OUTPUTS
maximum switching current
5 A 250 V AC RESISTIVE 1 RELAY OUTPUTS
discrete input number
3
discrete input type
LOGIC LI1 LI2 LI3 5 MA 20 KOHM
discrete input voltage
110 V <= 121 V
discrete input logic
POSITIVE LOGIC LI1 LI2 LI3 < 20 V AND <= 15 MA > 79 V <= 2 MA
output current
0.4..1 ICL ADJUSTABLE
PTC probe input
750 OHM
communication port protocol
MODBUS
connector type
1 RJ45
communication data link
SERIAL
physical interface
RS485 MULTIDROP
transmission rate
4800 9600 OR 19200 BPS
installed device
31
protection type
PHASE FAILURE LINE
marking
CE
type of cooling
FORCED CONVECTION
operating position
VERTICAL + -10 DEGREE
height
455 MM
width
304 MM
depth
339.7 MM
product weight
50 KG
