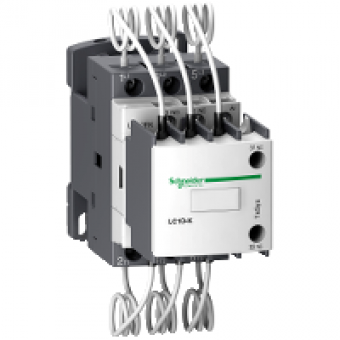

LC1DFKP7 - contactor TeSys LC1-DF 12.5 kVAr - coil 230 V AC, Schneider Electric
- Product Code: LC1DFKP7
- Brand: Schneider Electric
- Availability: To be confirmed
- € 29.96 Ex Tax:
MAIN CHARACTERISTICS
range
TESYS
range of product
TESYS D
product name
TESYS LC1D.K
product or component type
CAPACITOR DUTY CONTACTOR
device short name
LC1DFK
device application
CONTROL
contactor application
POWER FACTOR CORRECTION
poles description
3P
power pole contact composition
3 NO
[Ue] rated operational voltage
<= 690 V AC 5060 HZ FOR POWER CIRCUIT
reactive power rating
7 KVAR AT 220...240 V AC 5060 HZ <= 55 C
control circuit type
AC 5060 HZ
[Uc] control circuit voltage
230 V AC 5060 HZ
auxiliary contact composition
1 NO + 2 NC INSTANTANEOUS FOR CONTROL CIRCUIT
electrical durability
300000 CYCLES AT UE 400 V
mounting support
DIN RAIL
standards
IEC 60947-4-1
product certifications
CCC
connections - terminals
POWER CIRCUIT CONNECTOR 1 CABLES 2.5 MM - CABLE STIFFNESS FLEXIBLE - WITH CABLE END
tightening torque
power circuit : 1.7 N.m - on connector
operating rate
240 CYCH
COMPLEMETARY CHARACTERISTICS
auxiliary contacts type
TYPE MECHANICALLY LINKED 1 NO + 2 NC CONFORMING TO IEC 60947-5-1
compatibility code
LC1D
