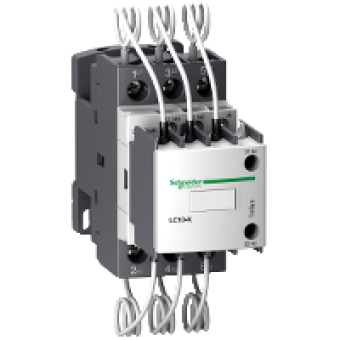

LC1DMKB7 - TeSys LC1D.K capacitor duty contactor - 3P - 25 kVAR - 415 V - 24 V AC coil, Schneider Electric
- Product Code: LC1DMKB7
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range
TESYS
range of product
TESYS D
product name
TESYS LC1D.K
product or component type
CAPACITOR DUTY CONTACTOR
device short name
LC1DMK
contactor application
POWER FACTOR CORRECTION
utilisation category
AC 6B
poles description
3P
power pole contact composition
3 NO
device location in system
LINE INTERRUPTION
[Ue] rated operational voltage
<= 690 V AC 5060 HZ FOR POWER CIRCUIT
reactive power rating
14 KVAR AT 230 V AC 5060 HZ <= 60 C
control circuit type
AC 5060 HZ
[Uc] control circuit voltage
24 V AC 5060 HZ
auxiliary contact composition
1 NO + 2 NC FOR SIGNALLING CIRCUIT
electrical durability
300000 CYCLES AT UE 400 V
mounting support
DIN RAIL
standards
IEC 60947-4-1
product certifications
CCC
connections - terminals
control circuit : screw clamp terminals 1 cable(s) 1...4 mm² - cable stiffness: solid - without cable end
tightening torque
control circuit : 1.7 N.m - on screw clamp terminals
operating rate
240 CYCH
COMPLEMETARY CHARACTERISTICS
auxiliary contacts type
TYPE MECHANICALLY LINKED 1 NO + 1 NC CONFORMING TO IEC 60947-5-1
compatibility code
LC1D
