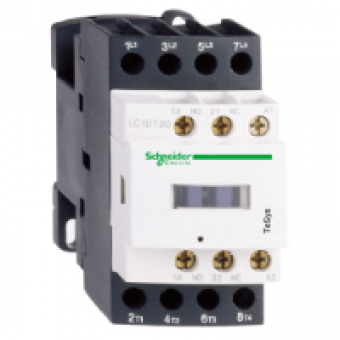

LC1DT25GD - TeSys D contactor - 4P(4 NO) - AC-1 - <= 440 V 25 A - 125 V DC standard coil, Schneider Electric
- Product Code: LC1DT25GD
- Brand: Schneider Electric
- Availability: To be confirmed
- € 52.58 Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS D
range
TESYS
product name
TESYS D
product or component type
CONTACTOR
device short name
LC1D
contactor application
RESISTIVE LOAD
utilisation category
AC-1
poles description
4P
power pole contact composition
4 NO
[Ue] rated operational voltage
<= 690 V AC 25...400 HZ FOR POWER CIRCUIT
[Ie] rated operational current
25 A <= 60 C AT <= 440 V AC AC-1 FOR POWER CIRCUIT
control circuit type
DC STANDARD
[Uc] control circuit voltage
125 V DC
auxiliary contact composition
1 NO + 1 NC
[Uimp] rated impulse withstand voltage
CONFORMING TO IEC 60947
overvoltage category
III
[Ith] conventional free air thermal current
10 A AT <= 60 C FOR SIGNALLING CIRCUIT
Irms rated making capacity
140 A AC FOR SIGNALLING CIRCUIT CONFORMING TO IEC 60947-5-1
rated breaking capacity
250 A AT 440 V FOR POWER CIRCUIT CONFORMING TO IEC 60947
[Icw] rated short-time withstand current
30 A <= 40 C 10 MIN POWER CIRCUIT
associated fuse rating
10 A GG FOR SIGNALLING CIRCUIT CONFORMING TO IEC 60947-5-1
average impedance
2.5 MOHM AT 50 HZ - ITH 25 A FOR POWER CIRCUIT
[Ui] rated insulation voltage
600 V FOR POWER CIRCUIT CERTIFICATIONS CSA
electrical durability
0.8 MCYCLES 25 A AC-1 AT UE <= 440 V
power dissipation per pole
1.56 W AC-1
safety cover
WITH
mounting support
PLATE
standards
CSA C22.2 NO 14
product certifications
BV
connections - terminals
control circuit : screw clamp terminals 2 cable(s) 1...2.5 mm² - cable stiffness: flexible - with cable end
tightening torque
control circuit : 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
operating time
16..24 MS OPENING
safety reliability level
B10D = 1369863 CYCLES CONTACTOR WITH NOMINAL LOAD CONFORMING TO ENISO 13849-1
mechanical durability
30 MCYCLES
operating rate
3600 CYCH AT <= 60 DC
COMPLEMETARY CHARACTERISTICS
coil technology
BUILT-IN BIDIR PEAK LMTG SPSR
control circuit voltage limits
0.1...0.25 UC DROP-OUT AT 60 C DC
time constant
28 MS
inrush power in W
5.4 W AT 20 DC
hold-in power consumption in W
5.4 W AT 20 DC
auxiliary contacts type
TYPE MECHANICALLY LINKED 1 NO + 1 NC CONFORMING TO IEC 60947-5-1
signalling circuit frequency
25..400 HZ
minimum switching current
5 MA FOR SIGNALLING CIRCUIT
minimum switching voltage
17 V FOR SIGNALLING CIRCUIT
non-overlap time
1.5 MS ON DE-ENERGISATION BETWEEN NC AND NO CONTACT
insulation resistance
> 10 MOHM FOR SIGNALLING CIRCUIT
contact compatibility
M7
compatibility code
LC1D
