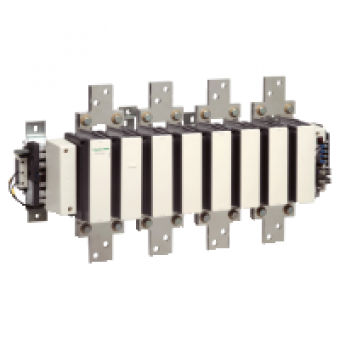

LC1F7804M7 - TeSys F contactor - 4P (4 NO) - AC-1 - <= 440 V 1600 A - coil 220 V AC, Schneider Electric
- Product Code: LC1F7804M7
- Brand: Schneider Electric
- Availability: To be confirmed
- € 4,924.26 Ex Tax:
MAIN CHARACTERISTICS
range of product
TESYS F
range
TESYS
product name
TESYS F
product or component type
CONTACTOR
device short name
LC1F
contactor application
RESISTIVE LOAD
control circuit type
AC 40..400 HZ
[Uc] control circuit voltage
220 V AC 40..400 HZ
[Uimp] rated impulse withstand voltage
8 KV
overvoltage category
III
[Ith] conventional free air thermal current
1600 A AT <= 40 DC
rated breaking capacity
6240 A CONFORMING TO IEC 60947-4-1
[Icw] rated short-time withstand current
3000 A <= 40 DC 3 MIN
associated fuse rating
1600 A GG AT <= 440 V
average impedance
0.1 MOHM AT 50 HZ - ITH 1600 A
[Ui] rated insulation voltage
1000 V CONFORMING TO IEC 60947-4-1
power dissipation per pole
250 W AC-1
mounting support
PLATE
standards
EN 60947-1
product certifications
ABS
connections - terminals
control circuit : screw clamp terminals 1 cable(s) 1...4 mm² - cable stiffness: flexible - without cable end
tightening torque
control circuit : 1.2 N.m
operating time
40..80 MS CLOSING
mechanical durability
5 MCYCLES
operating rate
600 CYCH AT <= 55 DC
COMPLEMETARY CHARACTERISTICS
utilisation category
AC-1
poles description
4P
power pole contact composition
4 NO
[Ue] rated operational voltage
<= 1000 V AC 5060 HZ
[Ie] rated operational current
1600 A <= 40 C AT <= 440 V AC AC-1
control circuit voltage limits
0.85...1.1 UC AT 55 C OPERATIONAL 40...400 HZ
inrush power in VA
2100 VA AT 20 C COS 0.9 40...400 HZ
hold-in power consumption in VA
50 VA AT 20 C COS 0.9 40...400 HZ
heat dissipation
44 W
compatibility code
LC1F
