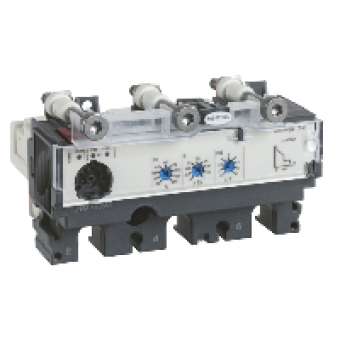

LV430470 - trip unit - Micrologic 2.2 - 160 A - 3 poles 3d, Schneider Electric
- Product Code: LV430470
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range
COMPACT
range of product
NSX100..250
product name
MICROLOGIC
product or component type
CONTROL UNIT
range compatibility
COMPACT NSX100
device application
DISTRIBUTION
poles description
3P
protected poles description
3T
network type
AC
network frequency
50 60 HZ
trip unit name
MICROLOGIC 2.2
trip unit technology
ELECTRONIC
trip unit protection functions
LSOI
trip unit rating
160 A 40 C
protection type
INSTT SHORT-CIRCUIT PROTECTION
COMPLEMETARY CHARACTERISTICS
mounting mode
FIXED
[Ue] rated operational voltage
690 V AC 5060 HZ
long time pick-up adjstment type Ir
ADJUSTABLE 9 SETTINGS
long time pick-up adjustment range
0.9..1 X IO
long time delay adjustment type
FIXED
[tr] long-time delay adjustment range
11 S 7.2 X IR
thermal memory
20 MINUTES BFR+AFTER TRIPPING
short-time pick-up adjustment type Isd
ADJUSTABLE
[Isd] short-time pick-up adjustment range
1.5..10 X IR
short-time delay adjustment type
FIXED
[tsd] short-time delay adjustment range
0.02 S
instantaneous pick-up adjustment type Ii
FIXED
instantaneous pick-up adjustment range
2400 A
