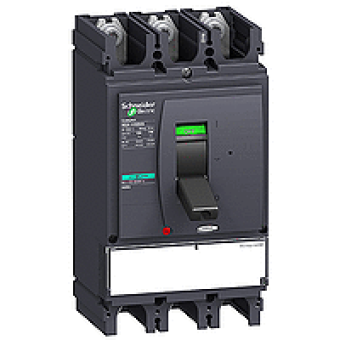

LV432956 - switch-disconnector Compact NSX630NA - 630 A - 3P, Schneider Electric
- Product Code: LV432956
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range
COMPACT
range of product
NSX400..630
product name
COMPACT NSX
product or component type
SWITCH DISCONNECTOR
device short name
COMPACT NSX630NA
switch-disconnector name
COMPACT NSX630NA
poles description
3P
network type
AC
network frequency
50 60 HZ
[Ie] rated operational current
AC-22A : 630 A AC 50/60 Hz 220/240 V
[Ui] rated insulation voltage
800 V AC 5060 HZ CONFORMING TO IEC 60947-3
[Uimp] rated impulse withstand voltage
8 KV CONFORMING TO IEC 60947-3
[Ith] conventional free air thermal current
630 A 60 DC
[Icm] rated short-circuit making capacity
330 KA WITH UPSTREAM PROTECTION CIRCUIT BREAKER
[Ue] rated operational voltage
690 V AC 5060 HZ CONFORMING TO IEC 60947-3
breaking capacity code
NA
suitability for isolation
YES CONFORMING TO EN 60947-3
contact position indicator
YES
visible break
NO
pollution degree
3 CONFORMING TO IEC 60664-1
COMPLEMETARY CHARACTERISTICS
control type
TOGGLE
mounting mode
FIXED
mounting support
BACKPLATE
upside connection
FRONT
downside connection
FRONT
[In] rated current
630 A
[Icw] rated short-time withstand current
2.32 KA 20 S CONFORMING TO IEC 60947-3
mechanical durability
15000 CYCLES CONFORMING TO IEC 60947-3
electrical durability
AC-22A : 1500 cycles 690 V AC 50/60 Hz In conforming to IEC 60947-3
connection pitch
45 MM
height
255 MM
width
140 MM
depth
110 MM
product weight
5.2 KG
compatibility code
NSX630
