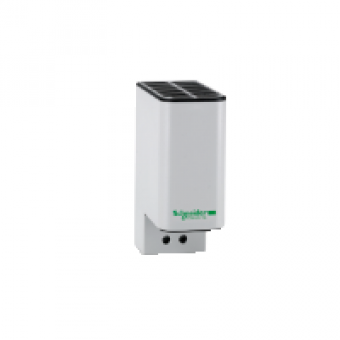

NSYCR10WU1C - ClimaSys PTC heating resistance 10W 12-24V insulate, Schneider Electric
- Product Code: NSYCR10WU1C
- Brand: Schneider Electric
- Availability: To be confirmed
- € 37.03 Ex Tax:
MAIN CHARACTERISTICS
range
CLIMASYS
product name
CLIMASYS CR
product or component type
RESISTANCE HEATER
power range
10 W
rated power in W
10 W
input voltage
12...24 V DC
electrical connection
2 SCREW TERMINALS 2.5 MM
COMPLEMETARY CHARACTERISTICS
operating position
VERTICAL
ambient air temperature for operation
-40...70 C
IP degree of protection
IP20
electrical insulation class
CLASS II
product certifications
UL
material
EXTRUDED ALUMINIUM FOR BODY
height
external : 98 mm
width
external : 38 mm
depth
external : 75 mm
condition of use
ELEC PROTECTION IS NEEDED
fixing mode
BY CLIPS
mounting support
35 MM DIN RAIL
