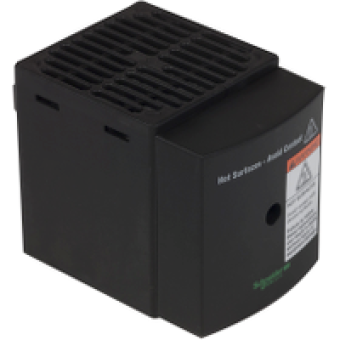

NSYCR170W230VVC - ClimaSys PTC heating resistance 177W 230V with ventilator insulate, Schneider Electric
- Product Code: NSYCR170W230VVC
- Brand: Schneider Electric
- Availability: To be confirmed
- € 139.59 Ex Tax:
MAIN CHARACTERISTICS
range
CLIMASYS
product name
CLIMASYS CR
product or component type
RESISTANCE HEATER WITH FAN
power range
177 W
rated power in W
177 W
input voltage
230 V AC 5060 HZ
electrical connection
2 SCREW TERMINALS 2.5 MM
COMPLEMETARY CHARACTERISTICS
operating position
VERTICAL
ambient air temperature for operation
-40...70 C
IP degree of protection
IP20
electrical insulation class
CLASS II
product certifications
UL
material
EXTRUDED ALUMINIUM FOR BODY
height
external : 75 mm
width
external : 65 mm
depth
external : 90 mm
condition of use
ELEC PROTECTION IS NEEDED
fixing mode
BY CLIPS
mounting support
35 MM DIN RAIL
The Schneider Electric NSYCR170W230VVC is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
