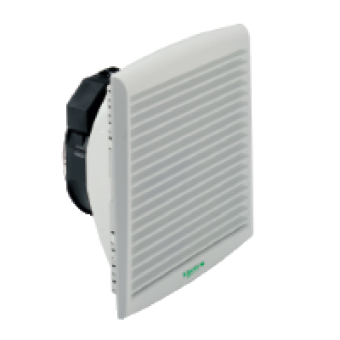

NSYCVF165M48DPF - ClimaSys forced vent. IP54 165m3/h 48V DC with outlet grille and filter G2, Schneider Electric
- Product Code: NSYCVF165M48DPF
- Brand: Schneider Electric
- Availability: To be confirmed
- € 121.18 Ex Tax:
MAIN CHARACTERISTICS
range
CLIMASYS
product name
CLIMASYS CV
product or component type
FAN
Type of filter
STANDARD
Flow rate
free flow rate with standard filter : 190 m3/h at 50 Hz
[Us] rated supply voltage
25...55.2 V
input voltage
48 V DC 5060 HZ
COMPLEMETARY CHARACTERISTICS
Absorbed power
8.7 W 50 HZ
[In] rated current
0.18 A 50 HZ
Noise level < at
50...51 DB
bearing type
BALL
height
external : 268 mm
width
external : 248 mm
depth
external : 104 mm
cut-out dimensions
223 X 223 MM
product weight
0.81 KG
material
INJECTED THERMOPLASTIC ASA PC FOR OUTLET GRILLE
colour
outlet grille : grey RAL 7035
ambient air temperature for operation
-10...70 C
ambient air temperature for storage
-40...70 C
maximum pressure
50 PA FLOW RATE 0 MH
connections - terminals
FASTON CONNECTOR
IP degree of protection
IP54
device composition
1 AXIAL MOTOR
condition of use
OUTSIDE TEMPERATURE MUST BE 5
