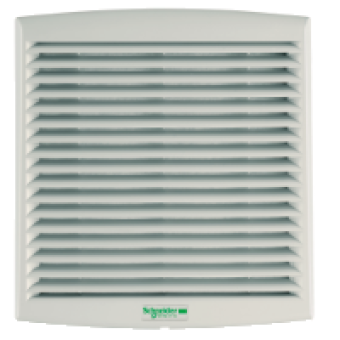

NSYCVF38M115PF - ClimaSys forced vent. IP54 38m3/h 115V with outlet grille and filter G2, Schneider Electric
- Product Code: NSYCVF38M115PF
- Brand: Schneider Electric
- Availability: To be confirmed
- € 45.55 Ex Tax:
MAIN CHARACTERISTICS
range
CLIMASYS
product name
CLIMASYS CV
product or component type
FAN
Type of filter
STANDARD
Flow rate
free flow rate with standard filter : 38 m3/h at 50 Hz
[Us] rated supply voltage
75...125 V
input voltage
115 V 5060 HZ
COMPLEMETARY CHARACTERISTICS
Absorbed power
3.3 W 50 HZ
[In] rated current
0.16 A 50 HZ
Noise level < at
40...41 DB
bearing type
BALL
height
external : 137 mm
width
external : 117 mm
depth
external : 49 mm
cut-out dimensions
92 X 92 MM
product weight
0.22 KG
material
INJECTED THERMOPLASTIC ASA PC FOR OUTLET GRILLE
colour
outlet grille : grey RAL 7035
ambient air temperature for operation
-10...70 C
ambient air temperature for storage
-40...70 C
maximum pressure
29 PA FLOW RATE 0 MH
connections - terminals
CABLE
IP degree of protection
IP54
device composition
1 AXIAL MOTOR
condition of use
OUTSIDE TEMPERATURE MUST BE 5
Additional information
-MUST NOT BE CONNECTED TO A POWER CONVERSION MODULE AN INVERTER OR UPS TYPE OF POWER SUPPLY
