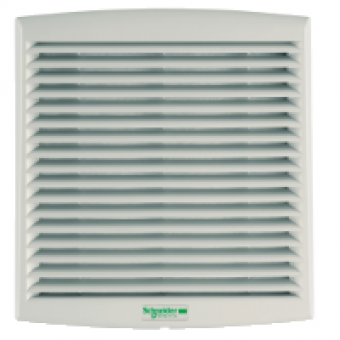

NSYCVF85M24DPF - ClimaSys forced vent. IP54 85m3/h 24V DC with outlet grille and filter G2, Schneider Electric
- Product Code: NSYCVF85M24DPF
- Brand: Schneider Electric
- Availability: To be confirmed
- € 50.10 Ex Tax:
MAIN CHARACTERISTICS
range
CLIMASYS
product name
CLIMASYS CV
product or component type
FAN
Type of filter
STANDARD
Flow rate
free flow rate with standard filter : 80 m3/h at 50 Hz
[Us] rated supply voltage
10...27.6 V
input voltage
24 V DC 5060 HZ
COMPLEMETARY CHARACTERISTICS
Absorbed power
7.6 W 50 HZ
[In] rated current
0.3 A 50 HZ
Noise level < at
46...49 DB
bearing type
BALL
height
external : 170 mm
width
external : 150 mm
depth
external : 62 mm
cut-out dimensions
125 X 125 MM
product weight
0.48 KG
material
INJECTED THERMOPLASTIC ASA PC FOR OUTLET GRILLE
colour
outlet grille : grey RAL 7035
ambient air temperature for operation
-10...70 C
ambient air temperature for storage
-40...70 C
maximum pressure
50 PA FLOW RATE 0 MH
connections - terminals
FASTON CONNECTOR
IP degree of protection
IP54
device composition
1 AXIAL MOTOR
condition of use
OUTSIDE TEMPERATURE MUST BE 5
The Schneider Electric NSYCVF85M24DPF is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
