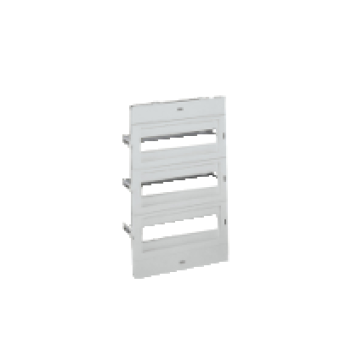

NSYDLA234G - Modular distribution chassis 234 mod. f/ NSYPLM108 NSYS3D108 NSYCRN108 NSYS3X108, Schneider Electric
- Product Code: NSYDLA234G
- Brand: Schneider Electric
- Availability: To be confirmed
- € 177.94 Ex Tax:
MAIN CHARACTERISTICS
range
SPACIAL
accessory / separate part category
MOUNTING ACCESSORY
Application
MULTI-PURPOSE
product or component type
CHASSIS
device short name
DLA
For enclosure nominal dimensions
NO RENDITION
mounting location
FRONT OF ENCLOSURE
range compatibility
SPACIAL S3D
device composition
1 CHASSIS STRUCTURE
quantity per set
SET OF 1
COMPLEMETARY CHARACTERISTICS
material
SELF-EXTINGUISHING INSULATING FOR FRONT PANEL
colour
FRONT PANEL GREY RAL 7035
fixing mode
BY FIXING ELEMENT - ON FRONT WITH SUPPORTS LOCATION
adjustment
IN HEIGHT FROM 40 TO 85 MM FOR DIN RAIL
number of horizontal rows
6
total number of 18 mm modules
234
type of front plate
PLAIN AND CUT-OUT PLATES
number of cut-out
6 CUT-OUTS
height
980 MM
width
760 MM
