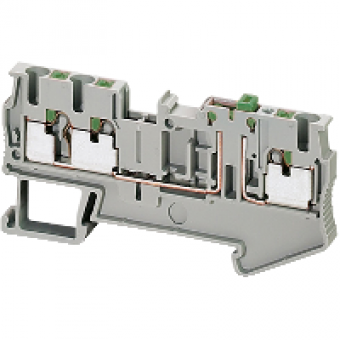

NSYTRP23SC - Linergy blade disc. block - 2.5mm² 20A single-level 1x2 push-in, Schneider Electric
- Product Code: NSYTRP23SC
- Brand: Schneider Electric
- Availability: To be confirmed
- € 3.13 Ex Tax:
This product has a minimum quantity of 50
MAIN CHARACTERISTICS
range of product
LINERGY
range
LINERGY
product name
LINERGY TR
product or component type
TERMINAL BLOCK
device short name
TRP
terminal block type
BLADE DISCONNECT
terminal block level
1
mounting mode
CLIP-ON
nominal cross section
2.5 MM
length
72 MM
colour
GREY
quantity per set
SET OF 50
COMPLEMETARY CHARACTERISTICS
width
5.2 MM
height
36.5 MM
connections - terminals
1 X PUSH-IN UPSTREAM
number of connections
3
connection position
TOP
number of measurement input
2
cable cross section
0.14..2.5 MM FLEXIBLE WITHOUT
wire stripping length
10 MM
tool type
DISCONNECTION FLAT SCREWDRIVER
[Ue] rated operational voltage
300 V CSA
[Ie] rated operational current
20 A CONFORMING TO ENIEC 60947-7-1
material
POLYAMIDE 66 INSULATING CASE
dielectric loss
0.01 AT 1 MHZ CONFORMING TO IEC 60250
dielectric constant
3.7 AT 1 MHZ
resistivity
10000 M.M M.M CONFORMING TO IEC 60093
surface resistance
1000 G G CONFORMING TO IEC 60093
creep resistance
500 CTI > 400 KB CONFORMING TO IEC 60093
flame retardance
V0 THICKNESS0.8 MM CONFORMING TO UL 94
product weight
11 G
range compatibility
PRISMA - G
product compatibility
SPACIAL ENCLOSURES
compatibility code
TERMINAL BLOCK
