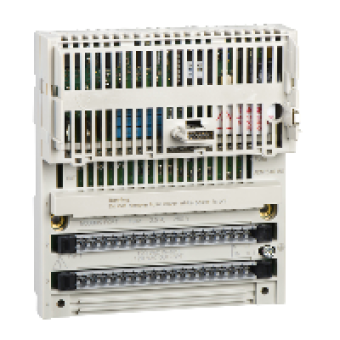

170ADM54080 - Modicon Momentum - Modbus I/O module base - 6 I / 3 O, Schneider Electric
- Product Code: 170ADM54080
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range of product
MODICON MOMENTUM AUTO PLATFORM
product or component type
MODBUS I O MODULE BASE
group of channels
1 GROUP OF 3 DISCRETE OUTPUTS
discrete input number
6
discrete output number
3
number of port
1
communication port protocol
MODBUS
wiring mode
2 OR 4 WIRES
COMPLEMETARY CHARACTERISTICS
discrete input logic
POSITIVE
discrete input voltage
120 V AC 47..63 HZ
input overvoltage protection
200 V
voltage state 1 guaranteed
>= 79 V
voltage state 0 guaranteed
<= 20 V
current state 1 guaranteed
>= 5.5 MA
current state 0 guaranteed
<= 1.9 MA
discrete output logic
POSITIVE
discrete output voltage
120 V 47..63 HZ
discrete output current
0.5 MA PER POINT
voltage drop
< 1.5 V 0.5 A AT STATE ON
leakage current
1.9 MA AC 120 V
surge current
>= 30 MA
response time
< 12.3 MS 60 HZ FROM STATE 1 TO STATE 0 INPUT CIRCUIT
communication port support
RS485
transmission rate
19200 BIT S
data format
7-BIT ASCII
number of addresses
0...247
port timeout
150 MS
marking
CE
electrical connection
2 CONNECTORS FOR REMOVABLE TERMINAL BLOCKS
current consumption
125 mA 120 V
product weight
0.24 KG
