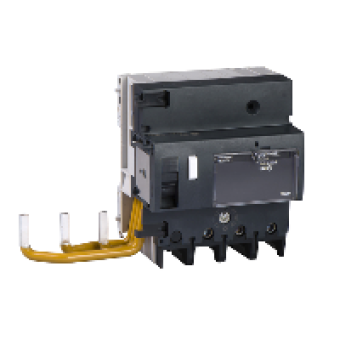

19014 - NG125 - earth leakage add-on block - Vigi NG125 - 3P - 63A - 300mA, Schneider Electric
- Product Code: 19014
- Brand: Schneider Electric
- Availability: To be confirmed
- € 111.18 Ex Tax:
MAIN CHARACTERISTICS
range of product
NG125
product or component type
ADD-ON RESIDUAL CRRT DEVICES
device short name
VIGI NG125
poles description
3P
[In] rated current
63 A
network type
AC
earth-leakage sensitivity
300 MA
earth-leakage protection time delay
INSTANTANEOUS
earth-leakage protection class
TYPE A
COMPLEMETARY CHARACTERISTICS
device location in system
OUTGOER
network frequency
50 60 HZ
[Ue] rated operational voltage
230...415 V AC 5060 HZ
residual current tripping technology
VOLTAGE INDEPENDENT
[Ui] rated insulation voltage
690 V AC 5060 HZ CONFORMING TO IEC 60947-2
[Uimp] rated impulse withstand voltage
8 KV CONFORMING TO IEC 60947-2
mounting support
35 MM SYMMETRICAL DIN RAIL
electrical connection to mcb
BY SCREWS
9 mm pitches
9
height
118 MM
width
162 MM
depth
81 MM
product weight
0.41 KG
electrical durability
10000 CYCLES CONFORMING TO IEC 60947-2
connections - terminals
TUNNEL TYPE TERMINALS FLEXIBLE WIRES 1...35 MM MAX
wire stripping length
20 MM
tightening torque
3.5 N.M
product compatibility
SINGLE TERMINAL
market segment
SMALL COMMERCIAL
