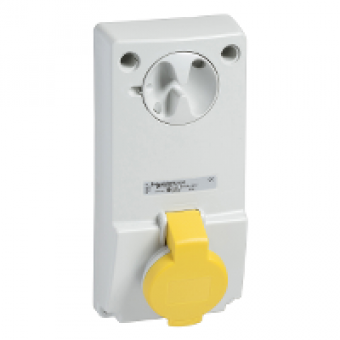

82039 - Unika interlocked socket - 32 A - 2P + E - 100...130 V AC - IP44 - panel, Schneider Electric
- Product Code: 82039
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range
PRATIKA
range of product
PRATIKA
product name
UNIKA SOCKET
product or component type
INTERLOCKED SOCKET
device short name
UNIKA SOCKET
plug, socket category
LV
poles description
2P+E
network type
AC
outlet standard
INDUSTRIAL
COMPLEMETARY CHARACTERISTICS
mounting mode
PANEL-MOUNTED
[In] rated current
32 A
[Ue] rated operational voltage
100..130 V
network frequency
50 60 HZ
ground lug clockwise position
4 H
protection type
WITHOUT PROTECTION
plug, socket material
SELF-EXTINGUISHING ENGINEERING POLYMER HOUSING
contacts material
NICKEL PLATED BRASS SLEEVES
connections - terminals
CAPTIVE SCREWS
cable cross section
<= 10 MM
cable outer diameter
<= 25 MM
cable entry
CABLE GLAND
thread type
PG21
product weight
0.7 KG
base dimension
103 X 225 MM
height
225 MM
width
103 MM
depth
128 MM
colour
GREY RAL 7035
voltage colour
YELLOW
compatibility code
UNIKA SOCKET
