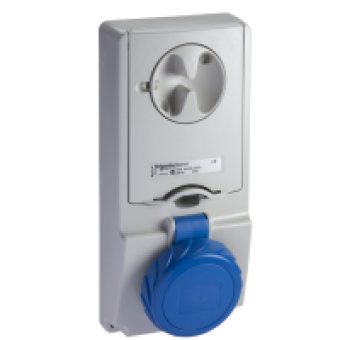

82181 - Unika interlocked socket - 16 A - 2P + E - 200...250 V AC - IP65 - panel, Schneider Electric
- Product Code: 82181
- Brand: Schneider Electric
- Availability: To be confirmed
- € 33.01 Ex Tax:
MAIN CHARACTERISTICS
range
PRATIKA
range of product
PRATIKA
product name
UNIKA SOCKET
product or component type
INTERLOCKED SOCKET
device short name
UNIKA SOCKET
plug, socket category
LV
poles description
2P+E
network type
AC
outlet standard
INDUSTRIAL
COMPLEMETARY CHARACTERISTICS
mounting mode
PANEL-MOUNTED
[In] rated current
16 A
[Ue] rated operational voltage
200..250 V
network frequency
50 60 HZ
ground lug clockwise position
6 H
protection type
FUSE
fuse size
10.3 X 38 MM
plug, socket material
SELF-EXTINGUISHING ENGINEERING POLYMER HOUSING
contacts material
NICKEL PLATED BRASS SLEEVES
connections - terminals
CAPTIVE SCREWS
cable cross section
<= 10 MM
cable outer diameter
<= 25 MM
cable entry
CABLE GLAND
thread type
PG21
product weight
0.717 KG
base dimension
103 X 225 MM
height
225 MM
width
103 MM
depth
126 MM
colour
GREY RAL 7035
voltage colour
BLUE
market segment
RESIDENTIAL
compatibility code
UNIKA SOCKET
