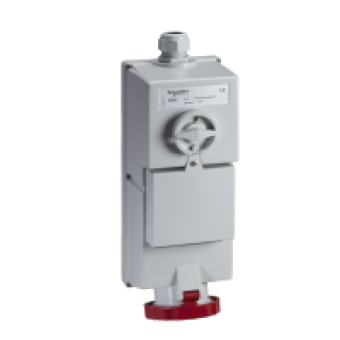

82883 - Isoblock interlocked socket - 63 A - 3P + N + E - 380...415 V AC - IP65 - wall, Schneider Electric
- Product Code: 82883
- Brand: Schneider Electric
- Availability: To be confirmed
- € 147.43 Ex Tax:
MAIN CHARACTERISTICS
range
PRATIKA
range of product
PRATIKA
product name
ISOBLOCK SOCKET
product or component type
INTERLOCKED SOCKET
device short name
ISOBLOCK SOCKET
plug, socket category
LV
industrial socket type
B32 63
poles description
3P+N+E
network type
AC
outlet standard
INDUSTRIAL
COMPLEMETARY CHARACTERISTICS
mounting mode
WALL-MOUNTED
[In] rated current
63 A
[Ue] rated operational voltage
380..415 V
network frequency
50 60 HZ
ground lug clockwise position
6 H
protection type
FUSE
fuse type
DIAZED
fuse size
E33
plug, socket material
SELF-EXTINGUISHING ENGINEERING POLYMER HOUSING
contacts material
STAINLESS STEEL PINS
connections - terminals
CAPTIVE SCREWS
cable cross section
<= 16 MM
cable outer diameter
<= 25 MM
cable entry
CABLE GLAND
thread type
PG29
product weight
3.097 KG
base dimension
144 X 389 MM
height
389 MM
width
144 MM
depth
147 MM
colour
GREY RAL 7035
voltage colour
RED
compatibility code
ISOBLOCK SOCKET
