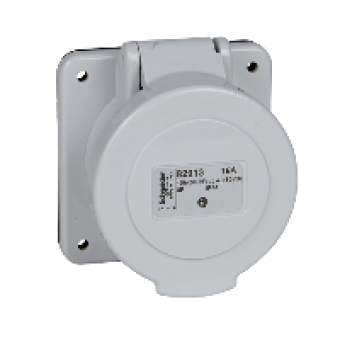

82904 - PratiKa industrial socket - 16 A - 3P - 40...50 V AC - IP44, Schneider Electric
- Product Code: 82904
- Brand: Schneider Electric
- Availability: To be confirmed
- On Request Ex Tax:
MAIN CHARACTERISTICS
range
PRATIKA
product name
PRATIKA SOCKET
product or component type
SOCKET
device short name
PRATIKA SOCKET
plug, socket category
ELV
poles description
3P
network type
AC
outlet standard
INDUSTRIAL
COMPLEMETARY CHARACTERISTICS
mounting mode
PANEL-MOUNTED
plug, socket, control station shape
STRAIGHT
[In] rated current
16 A
[Ue] rated operational voltage
40..50 V
network frequency
50 60 HZ
secondary keyway clockwise position
12 H
plug, socket material
HOUSING SELF-EXTINGUISHING ENGINEERING POLYMER
contacts material
PINS STAINLESS STEEL
connections - terminals
CAPTIVE SCREWS CPTLY LOOSENED
cable cross section
1...2.5 MM
product weight
0.143 KG
base dimension
65 X 65 MM
height
65 MM
width
65 MM
depth
65 MM
colour
GREY RAL 7035
voltage colour
WHITE
compatibility code
PRATIKA SOCKET
The Schneider Electric 82904 is a reliable, high-quality industrial component available through electric-shops.com, part of the global electric shops network. Enjoy fast delivery, competitive pricing, and professional support from a trusted global distributor.
