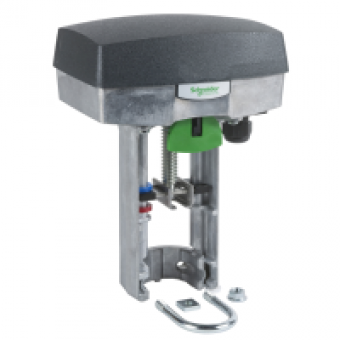

8800310030 - Forta electro mechanical actuator M800 for globe valve, Schneider Electric
- Product Code: 8800310030
- Brand: Schneider Electric
- Availability: To be confirmed
- € 181.31 Ex Tax:
MAIN CHARACTERISTICS
range
M800 SERIES ACTUATORS
product or component type
ELECTROC MECHANICAL ACTUATOR
device short name
M800
product destination
GLOBE VALVE
COMPLEMETARY CHARACTERISTICS
duty cycle
20 PT FULL LOAD
material
ALUMINIUM
enclosure material
ABS PC
colour
ALUMINIUM
transformer rated power in VA
50 VA
operating force
800 N MODULATING 15 S 9...25 MM
Supply Voltage
24 V DC WITH VARIATION +- 10
analogue input range
SELECTABLE INPUT 0...10 V WITH <= 100000 OHM
input type
DIGITAL TYPE 5 MA 24 V IN 20 MS
power consumption in VA
15 VA
output voltage
16 V DC WITH VARIATION +- 0.3 V
maximum load current
25 MA
protection type
SHORT-CIRCUIT
acoustic level
< 40 DBA
mechanical robustness
VIBRATIONS - CONFORMING TO IEC 68-2-6
standards
EN 61326 CERTIFIED 2006
product weight
1.8 KG
